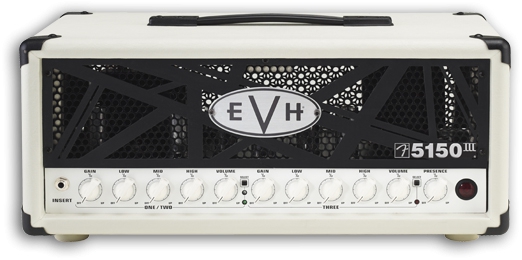

EVH 5150 III 50W Guitar Head – Ivory

EVH 5150 III 50W Head

Loaded with pure EVH sound and power, the new EVH 5150 III 50-Watt Head is a scaled-down version of its acclaimed 100-watt big brother—the mighty 5150III head—with many of the same great features. Its smaller size and portability make it a perfect amp for players who want arena volume, tone and performance in a compact package. It pairs perfectly with the new EVH 5150 III 2x12 and 1x12 cabinets, in addition to the current EVH 5150 III 4x12 cabinet.

It’s a three-channel amp; channels one and two share EQ, with gain, low, mid, high and volume controls; channel three has gain, low, mid, high, volume and master presence and resonance controls. Other features include selectable impedance (4, 8 or 16 ohms), dual parallel speaker output jacks, effects loop, headphone jack, line out and black hardware. Included four-button footswitch has 1/4” input jack; also accommodates MIDI footswitching. Available in Black and Ivory textured vinyl covering with black EVH-striped grille.

ELECTRONICS
• Wattage: 50 watts
• Effects Loop: 1/4" - (Send/Return)
• Inputs: One - 1/4"
• Headphone Jack: 1/4" Stereo
• Extension Speaker Jack: Two 1/4" Parallel
• Channels: Three - (Clean, Crunch, and Lead)
• Controls: Master Presence, Channel 1 and 2: Gain, Low, Mid, High, Volume; Channel 3: Gain, Low, Mid, High, Volume, Master Resonance Control (rear panel)

HARDWARE
• Cabinet Material: 7-Ply 5/8" Birch Plywood
• Pilot Light Jewel: Red LED Jewel
• Handle: Molded Plastic Strap with Nickel-Plated Caps
• Front Panel: Black EVH Striped Steel
• Cover/Grill Cloth: Black or Ivory Textured Vinyl Covering with Black EVH Striped Steel Grille
• Output Impedance: 4, 8 or 16 ohms (Selectable)
• Amplifier Length: 12" (30.4 cm)
• Amplifier Width: 20" (50.8 cm)
• Amplifier Height: 8.6" (21.9 cm)
• Amplifier Weight: 35 lbs. (15.9 kg)

TUBES
• Preamp Tubes: 7 JJ ECC83 (12AX7)
• Power Tubes: 2 JJ 6L6

MISCELLANEOUS
• Unique Features: 4-button footswitch with 1/4" cable input with ultra fast switching, MIDI input that can be used to control channels and effects loop with virtually any MIDI device, 3 foot heavy duty speaker cable

ACCESSORIES
• Footswitch: 4-Button Footswitch Included
• Cover: Optional Fitted Cover wih EVH® Logo Available (P/N 0079197000)
