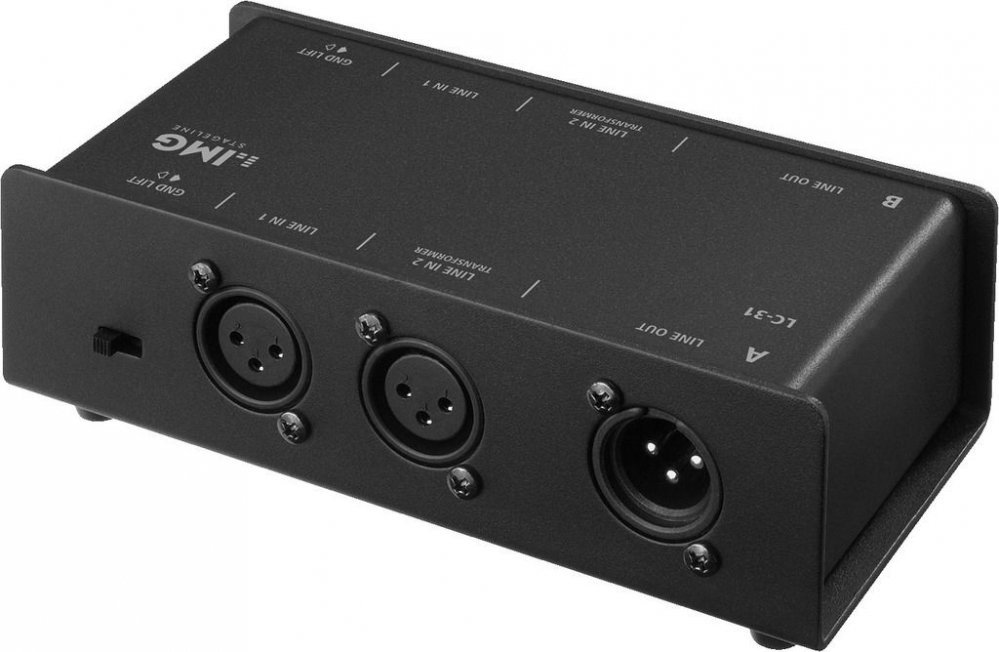

Monacor LC-31 2-channel line signal combiner

Monacor LC-31

2-channel 2-way line combiner, (4 inputs/2 outputs), e.g. for connecting 2 mixers to one amplifier.

Features:

• 1 galvanically isolated, balanced XLR input (600 Ω) with ground lift switch for each channel
• 1 balanced XLR direct input for each channel
• 1 balanced XLR output (600 Ω) for each channel
• Frequency range: 20-20,000 Hz
• Robust metal housing with very good shielding qualities, suitable for stage applications

Specifications:

• Description: combiner
• Frequency range: 20-20,000 Hz
• Input impedance: 600 Ω
• Output impedance: 600 Ω
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 160 x 55 x 85 mm
• Weight: 761 g
• Inputs: 4 x XLR, bal.
• Outputs: 2 x XLR, bal.
• Other features: ground lift switch
