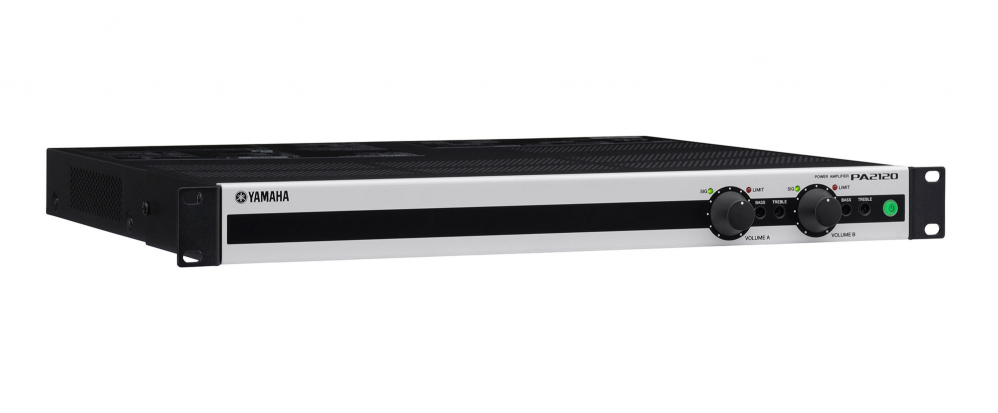

Yamaha PA2120 power amplifier

Yamaha PA2120

With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.

Specifications:

• Easy setup, and a user-friendly interface for effortless operation
• Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
• 1 stereo/2 mono line inputs
• Output EQ for optimizing the sound of each Output channel
• Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
• Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
• Service areas or zoning areas can be expanded by adding a PA2120
• Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
• Intelligent protection function ensures safe, reliable operation
• Certified by ENERGY STAR
• Certified as Yamaha Eco Products
• Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
