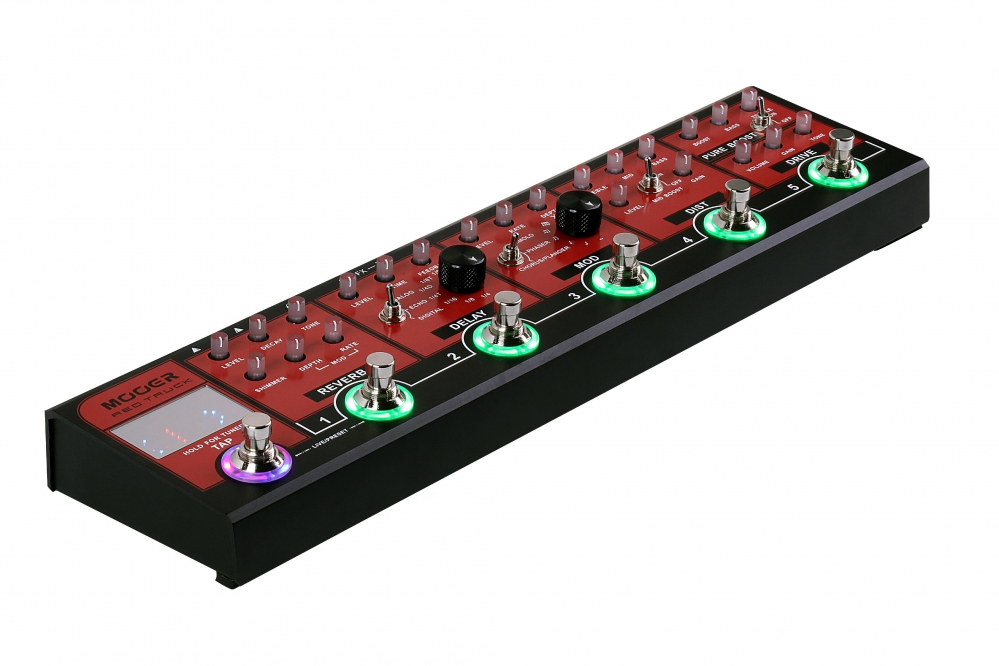

Mooer TDL3 Red Truck guitar effect

Mooer TDL3 Red Truck

• 8 Effects in one housing: Boost, overdrive, distortion, tremolo, phaser, chorus/ flanger, delay, reverb
• No menus, but controls for each parameter
• Built-in tuner
• Various routing options
• Integrated speaker simulation
• Separate footswitches for drive, dist, mod, delay, reverb and tap/ tuner
• Live and preset mode
• Pure boost section controller for boost, bass and treble
• On/ off toggle switch for activating/ deactivating of the pure boost
• Drive section knob for volume, gain and tone
• Distortion section knob for treble, mid,bass, level and gain
• Mid boost toggle switch for additional mid range boost
• Mod section for level, rate and depth
• Modulation tap tempo section knob for setting the tap tempo subsection (whole, half notes, quarter, eighth, triplets, sixteenth, random)
• Toggle switch for selecting the modulation effect (tremolo, phaser, chorus/ flanger)
• Delay section knob for level, time and feedback,
• Delay tap tempo section knob for setting the tap tempo subsection (1/4, 1/8, 1/16, 1/4T, 1/4D, 1/8T, 1/8D)
• Toggle switch for selecting the delay mode (analog, echo, digital)
• Reverb section knob for level, decay, tone, shimmer, mod depth, and mod rate
• Status LEDs
• LED display for tuner/ preset mode
• 6.3 mm Mono jack input
• 2x 6.3 mm Mono jack (L/R) outputs
• 6.3 mm Mono (send/ return) effects loop
• 6.3 mm Stereo jack headphone/ speaker simulation output
• Power supply via optional 9 V DC power supply with 2.1 x 5.5 mm coaxial power connector and polarity (-) inside (Mooer PDNW-9V2A-MP - not included)
• Current consumption: 300 mA
• Dimensions (L x W x H): 370 x 96 x 51 mm
• Weight: 1,200 g
