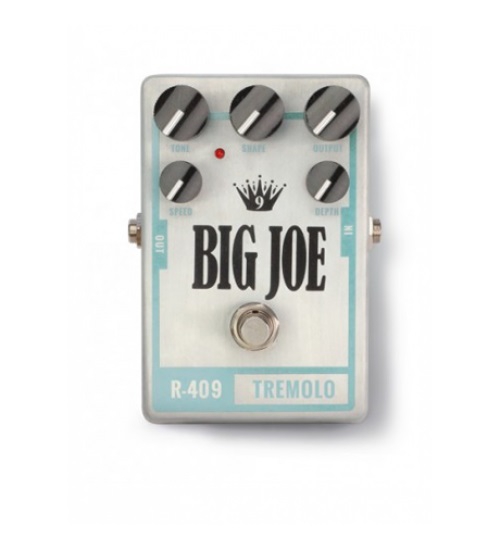

Big Joe Raw Series R-409 Tremolo

The first tremolo pedal from Big Joe. Part of the RAW Series.

The Big Joe Tremolo is a 5-knob, all analog, true bypass, vactrol based optical tremolo. The Speed and Intensity knobs set and control modulation effect between 1Hz-10Hz. Shape control varies wave form from square to triangle so you can have new wave or vintage character; Vox to Fender and anywhere in between. Tone control allows you to alter the mood and "make-up" for potential tone loss associated with the tremolo action. Output control functions as a gain trim pot control and helps to "make-up", recover or punch up the gain structure so there is no loss of tone or volume going through the pedal, and both can be enhanced by twisting a couple of knobs. A very unique and organic sounding tremolo pedal.

- Optical tremolo effects pedal
- Analog
- Controls for Tone, Shape, Output, Speed and Depth
- Bypass footswitch
- True Bypass
- Metal housing
- Status-LED
- 6.3 mm mono jack in-/output
- 9V battery powered or optional 9V DC power supply, 2.1 mm x 5.5 mm barrel plug, polarity (-) center, e.g. Big Joe PS-206
- Incl. small bag with Big Joe logo
- Dimensions (L x W x H) incl. sockets & knobs: 121 mm x 88 mm x 54 mm
- Weight 584 g
- Made in USA
