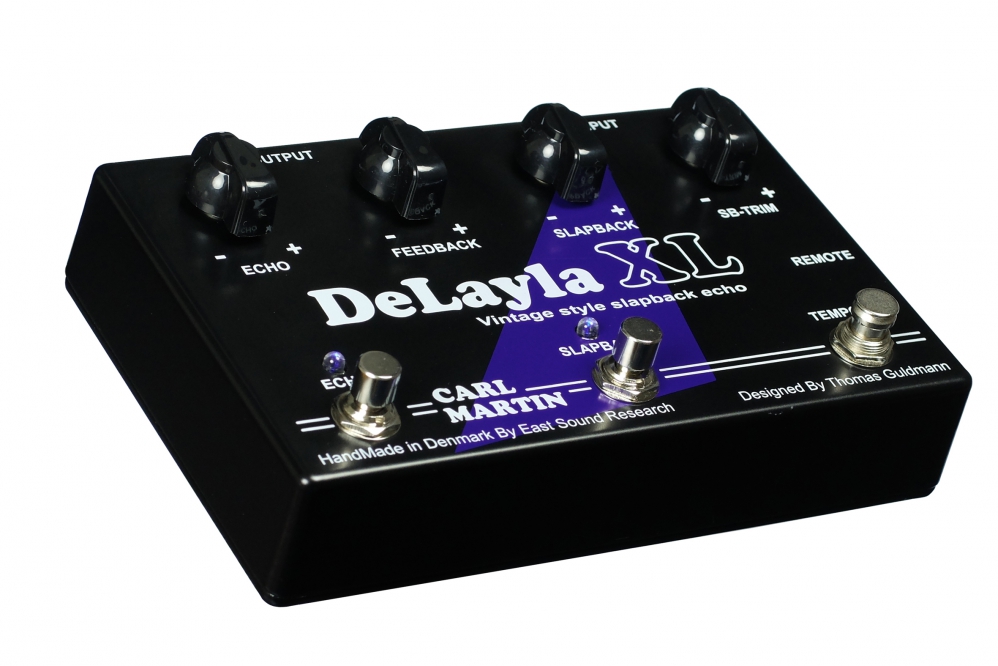

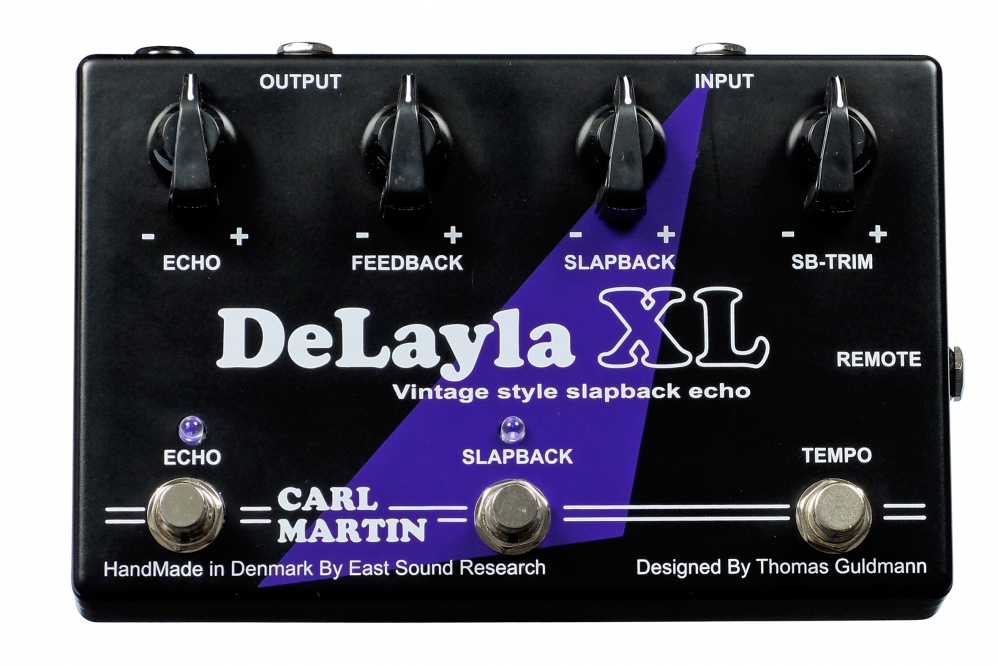

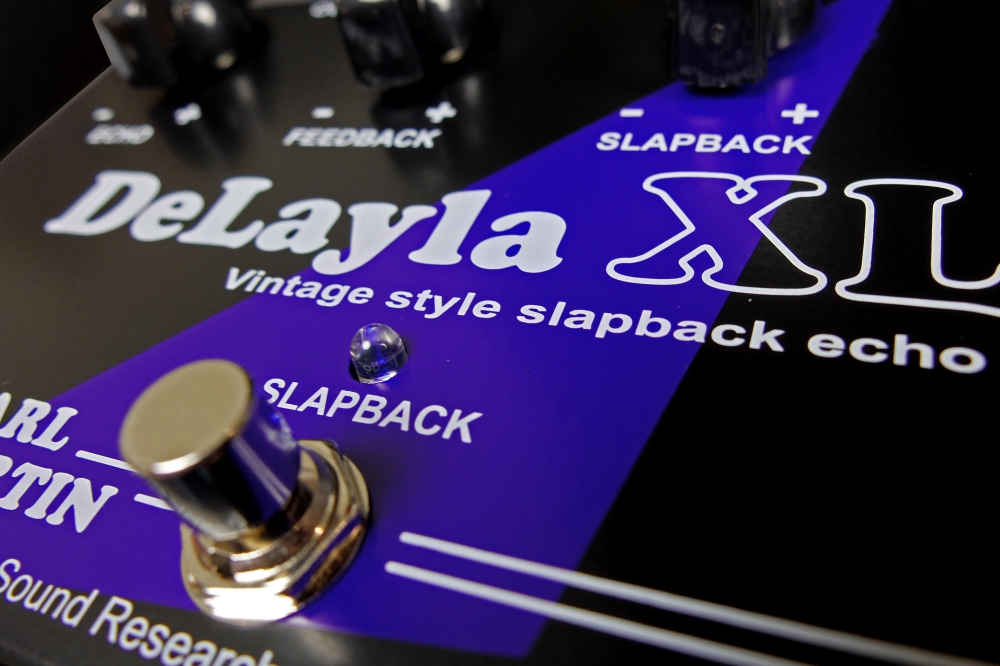

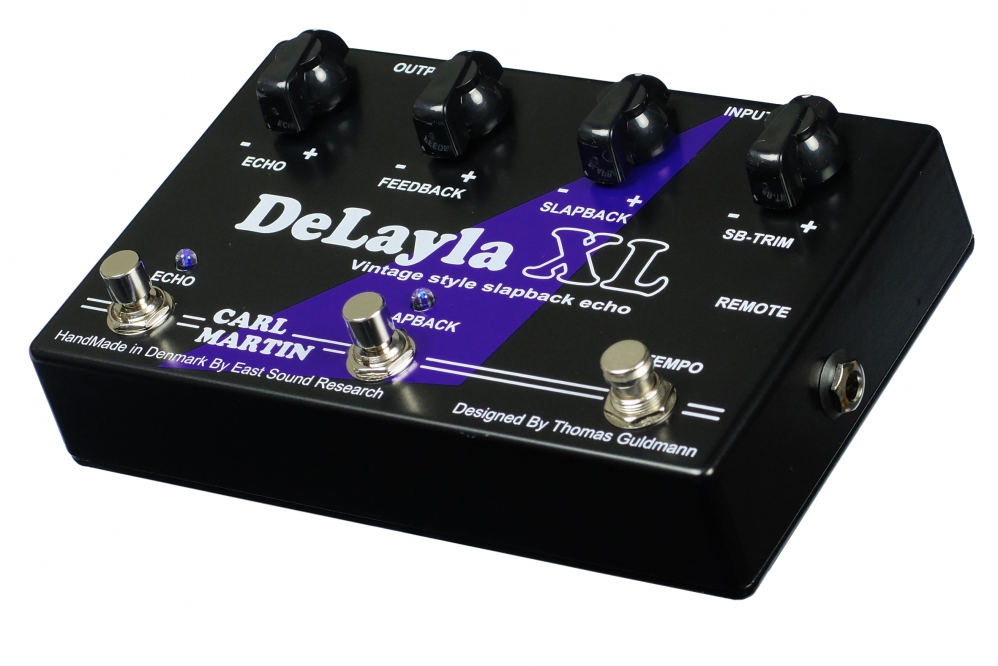

Carl Martin DeLayla XL

The Carl Martin DeLayla XL is designed and developed with one goal in mind: To create a superior echo pedal, with the same sonic quality as the original DeLayla but with new extended features, yet incorporating some of the same features used in vintage tape delay units.
To achieve this, we have incorporated a second delay head (slapback) (similar to using two heads simultaneously on a tape delay).
The DeLayla makes it possible to create different delay patterns, going from strict slapback to way offbeat.
The Carl Martin DeLayla XL also features a built in regulated power supply.
The result is a warm, smooth sound reminiscent of the vintage tape units used in the 50's and 60's, combined with modern features.
The Carl Martin DeLayla XL is able to capture one of the hardest sounds: That authentic rock'n roll slapback echo, that digital processors are unable to emulate.

- analog delay effects pedal
- based on the Carl Martin DeLayla with a second "delay head" (slapback) added
- warm, smooth sound reminiscent of the vintage tape units used in 50s and 60s
- 20-1000 ms delay time
- controls for Echo, Feedback, Slapback and SB-Trim
- Echo footswitch
- Slapback footswitch
- Tempo footswitch
- status LED
- metal housing
- 6.3 mm mono IN/OUT jacks
- 6.3 mm TRS remote footswitch input
- DC/DC converter circuitry delivers 12 Volts internally
- power supply via optional 9V DC (Carl Martin Power Jack) adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 150 mA
- dimensions (L x W x H) 186 x 120 x 55 mm
- weight 820 g
- handmade in Denmark
