EarthQuaker Devices Palisades V2 Mega Ultimate Overdrive electric guitar effect

The Palisandes is an exceptionally versatile Overdrive pedal with 2 channels, 6 different clipping voices and 5 bandwidth settings. Hints of a well-known green overdrive pedal can be noticed but with all its added options the Palisades is much more than that. In addition to the independently adjustable gain channels the Palisades features a foot-switchable volume boost as well as Normal/Bright and Buffer on/off toggle switches. Boost and Gain B features can be activated in standard latching operation or in momentary operation, by just holding the footswitch down for as long as you’d use the effect. The Palisades features True bypass and is hand made in Ohio, USA. The Palisades V2 uses silent relay-based soft touch switching. Audio will not pass without power.

- 2 channel Overdrive/Distortion with independent booster
- 6 different clipping voices and 5 bandwidth settings
- independently foot switchable boost
- true bypass
- 3 footswitches for Gain A, Gain B and Boost
- 5 controls for Boost, Volume, Tone, Gain A and Gain B
- 2 rotary selector switches for Voice and Bandwidth
- 2 toggle switches for Normal/Bright modes and Buffer On/Off
- all analog operation
- silent relay-based soft touch switching
- momentary or latching operation on Gain B and Boost features
- bypass footswitch
- boost footswitch
- gain B footswitch
- 3 Status LEDs
- metal housing

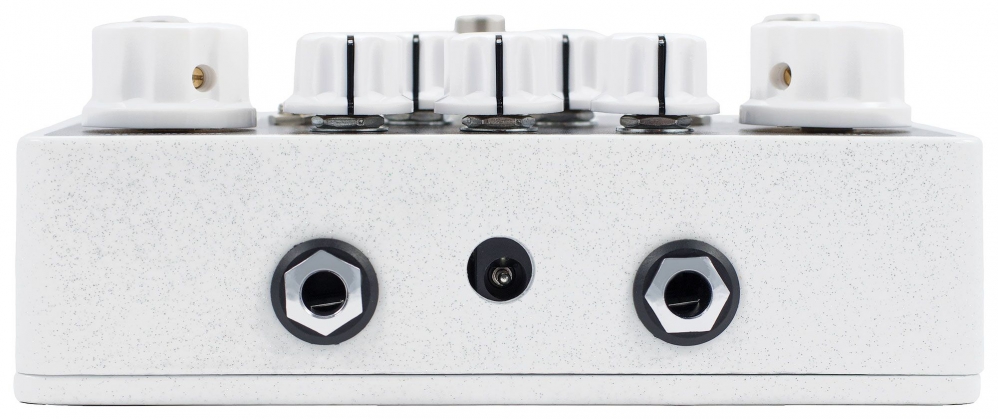

- 6.3 mm mono IN/OUT jacks
- power supply optional 9V DC adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- dimensions (D x W x H) 117 x 144 x 57 mm
- current draw 30 mA
- hand made in USA
