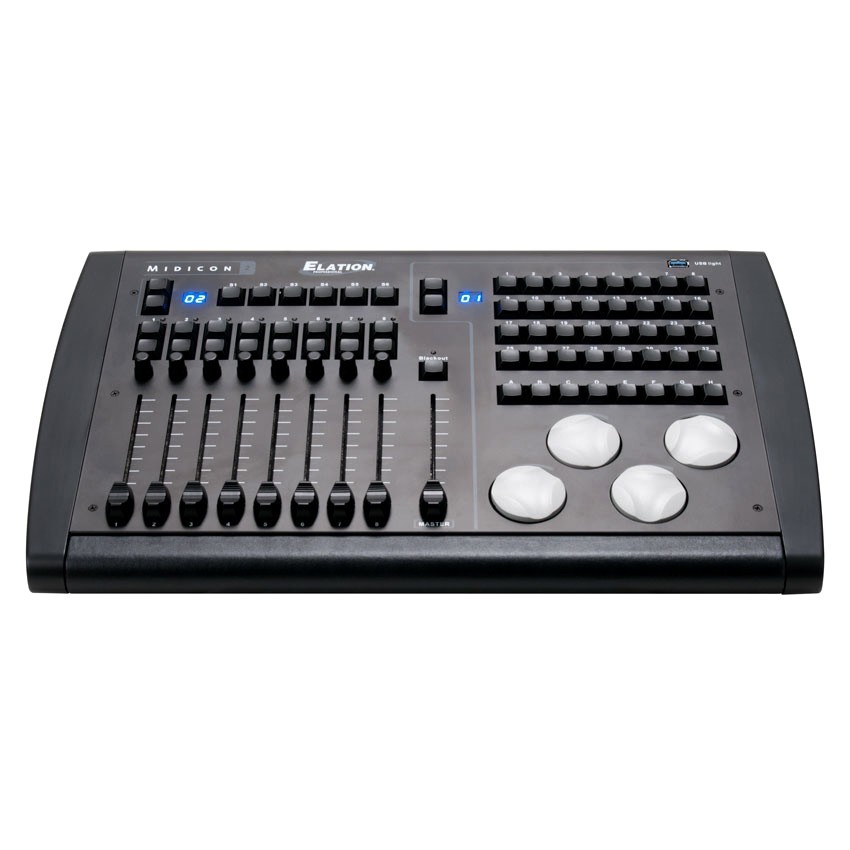

American DJ Midicon 2 professional USB powered controller

American DJ Midicon 2

MIDICON-2 is a professional USB powered controller which can be used to control lighting, video or audio software and/or hardware using Midi protocol. A Midi Mapper Software is provided, to assign Midi channels and notes to each button, fader or encoder. An updated design from the original MIDICON™ controller, the MIDICON-2 features tactile spring loaded buttons, (1) master and (8) control 100mm faders, (16) playback page buttons above faders, (8) rotary dials with push-in selection above faders, a bank of (32) instant effects or scene calling buttons, (1) blackout button, (6) general purpose buttons for often used functions, (8) bump/momentary effect buttons, (4) rotary encoder wheels with push-in selection, USB input for a gooseneck work light (not included), removable outer case for 6U rack mounting (rack mount kit included), and a Kensington™ security device slot.

Specifications:

• USB Powered
• Tactile Spring Loaded Buttons
• Midi Mapper Software
• (6) General Purpose Buttons
• (1) Master and (8) Control 100mm Faders
• (16) Playback Page Buttons Above Faders
• (8) Rotary Dials with Push-In Selection Above Faders
• (8) Dual Color Feedback LEDs Above Faders
• (1) Blackout Button
• (32) Instant Effects or Scene Calling Buttons
• (8) Bump / Momentary Effect Buttons
• (4) Rotary Encoder Wheels with Push-In Selection
• USB Input for Gooseneck Work Light (not included)
• Removable Outer Case for 6U Rack Mounting
• 6U Rack Mount Kit Included
• Kensington Security Device Slot
• USB 2.0 Type “B” Port
• Length: 20.2” (514mm)
• Width: 12.9” (328mm)
• Vertical Height: 3.6” (91mm)
• Weight: 15.0 lbs. (6.8 kg)

Installation:

• Any Flat Surface
• 6U Rack Mount with included kit
• Kensington Security Device Slot
