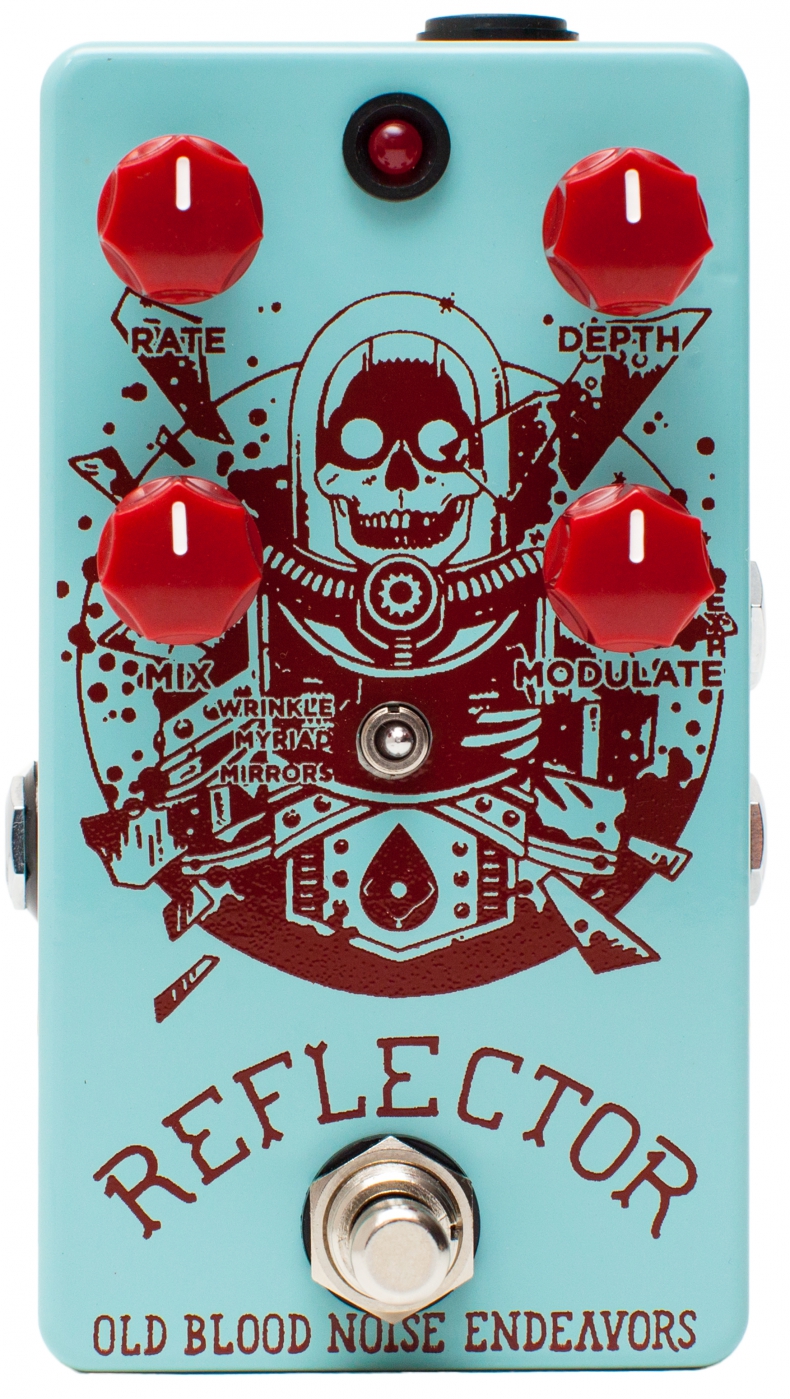

Old Blood Noise Endeavors Reflector - Chorus guitar effect

Reflector is a densely lush chorus coupled with three modes of modulation. This is a chorus with a bent, an ephemeral voice floating between aural dimensions. Controls include Rate and Depth for the Chorus/Flanger/Vibrato speed, Mix for a balance between unaffected and affected signal and Modulate to add Pitch selection, Chorus Voice selection or Flanger depth, depending on the mode. A three-way toggle switch allows the player to choose between Wrinkle Mode (A Vibrato-esque warble chorus with the added option of pitch selection, meaning the Modulate knob goes from one octave down to one octave up), Myriad Mode (a simple lush chorus, Modulate control selects from 1 to 4 voices on the Chorus.) or Mirrors Mode (Detuned Chorus meets Flanger in which the Modulate knob controls the depth of the Flanger, while Rate corresponds to both the Flanger speed and the detuned Chorus speed).The Reflector now features an expression out jack and click less switching. The output level can be tweaked via an internal trim pot for boost, slight drop, or unity gain.

- chorus effects pedal
- digital
- 3 modes (Wrinkle/Myriad/Mirrors)
- combines chorus with different modulation effects (Chorus + Vibrato/1-4 voiced Chorus/detuned Chorus + Flanger)
- expression control over either Rate or Modulation
- true bypass
- controls for Rate, Depth, Mix and Modulate
- toggle switch for selecting between modes
- internal DIP switch for selecting expression control parameter (Rate/Modulate)
- internal Output trim pot
- bypass footswitch
- status LED
- metal housing
- 6.3 mm mono IN/OUT jacks
- 6.3 mm TRS EXP input
- power supply via 9V DC adapter, 5.5 mm x 2.1 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 46 mA
- dimensions (L x W x H) 126 mm x 73 mm x 57 mm
- weight 430 g
- made in USA
- 4 Years W-Music Distribution Warranty (product registration required)
