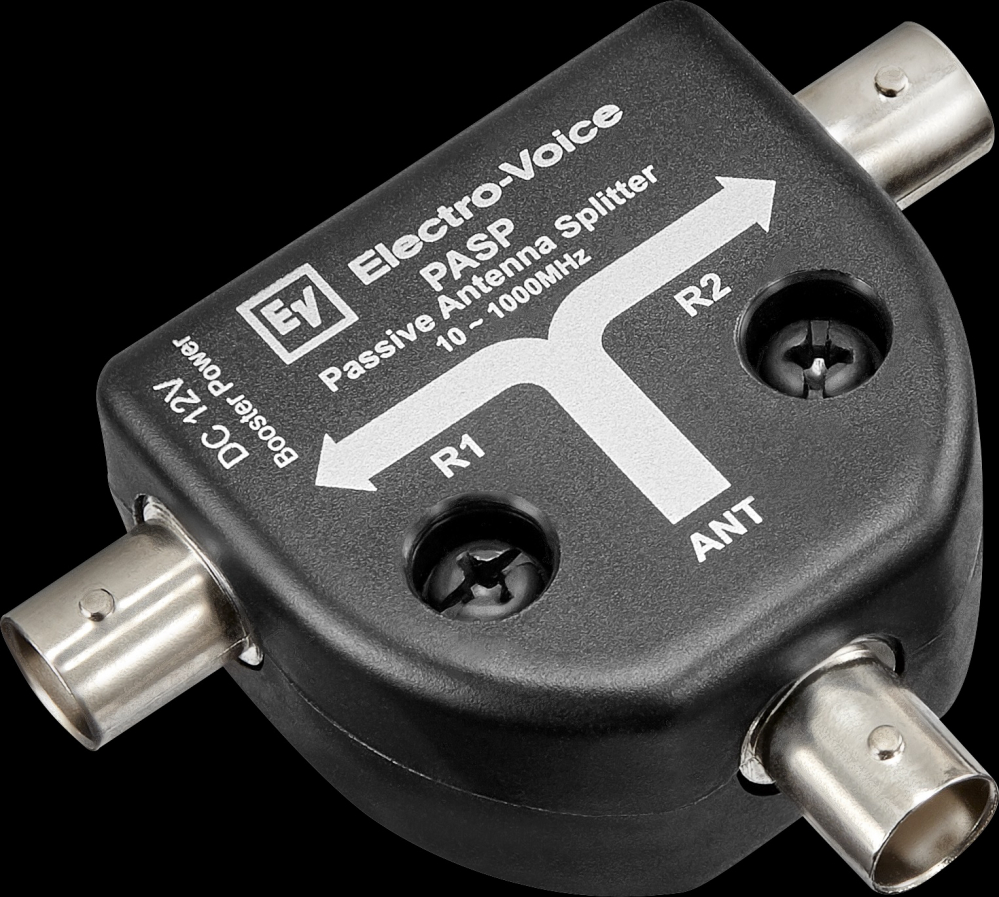

Electro-Voice RE3-ACC-PASP Antenna splitter kit

Electro-Voice RE3-ACC-PASP

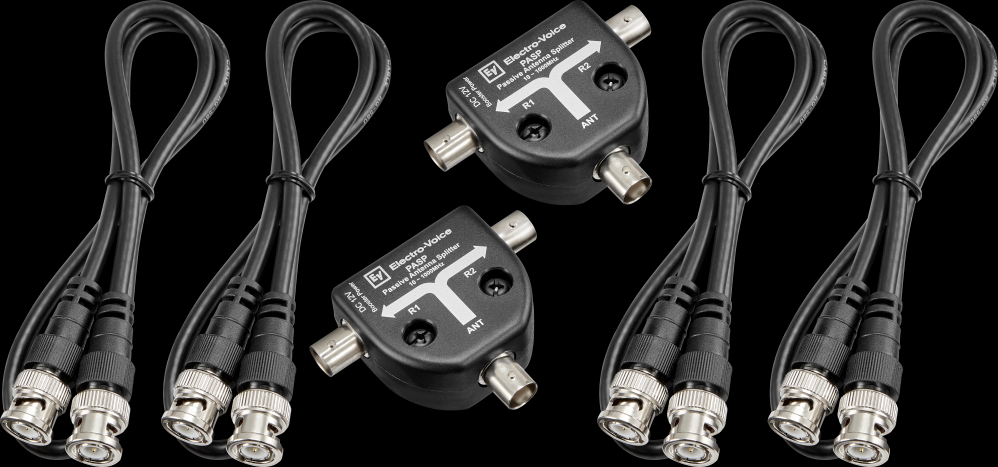

The PASP is a passive antenna splitter kit containing necessary items when splitting and sharing two incoming antenna signals between the diversity antenna jacks of two receivers. An ideal companion kit to the RMK2 dual rack kit, the PASP takes the signals collected by the front-mounted antennas on the RMK2’s CXU2 jacks, and distributes them to the diversity antenna input jacks on two receivers. Will adapt any other sources of incoming cable-bound RF signals via BNC from remote antennas.

Specifications:

• RF carrier frequency range: 10 - 1,000 MHz
• Impedance: 50 Ω
• Isolation: 20 dB
• Insertion loss: 2 dB
• VSWR: 01:02
• Color: Black
