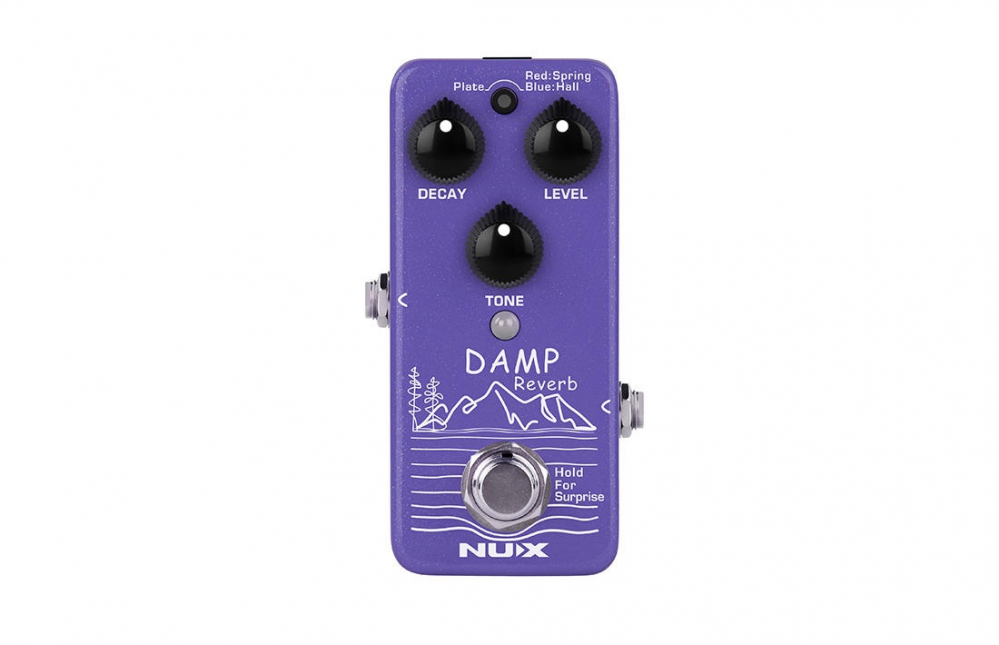

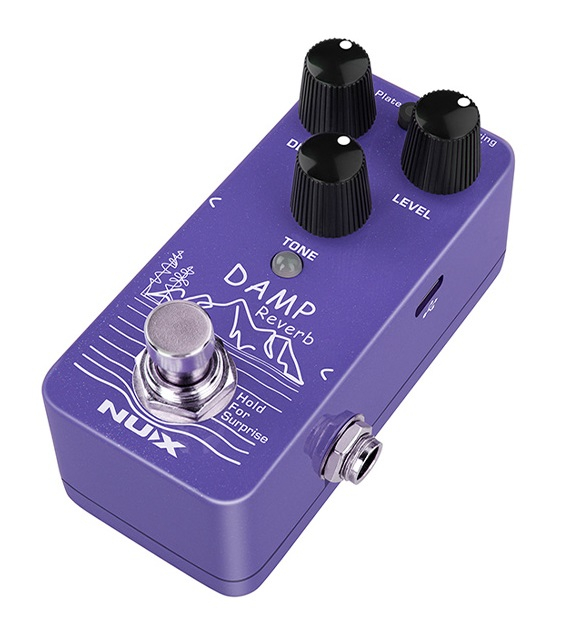

Nux NRV 3 Damp Reverb guitar effect pedal

Nux NRV 3 Damp Reverb

Whether you’re a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures,

DAMP reverb provides three different reverb types that makes everything musical and beautiful.

DAMP reverb offers True-bypass and Buffer-bypass (Trails), just hold the footswitch to boot-up the pedal (do not connect USB). The footswitch indicator will show you the bypass status. (While you boot-up the pedal, if the FS indicator flashes “Green”=BF, “Red”=TB.)

Mini but mighty! It also supports Stereo input & output. (Use 1/4” TRS plug, and choose Stereo mode.)

Specifications:

• 3 reverb types in the mini enclosure.
• Plate: Clear ambience. Renowned studio reverb found on classic recordings.
• Spring: Bottom-heavy dimension flashback. Classic “surf” reverb; great for Rockabilly!
• Hall: Lush & large encompassing reverb with warm decay.
• Holding footswitch for secondary function. (Shimmer, Freeze)
• True-bypass or Buffer-bypass(Trails).
• Supports Stereo.
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency.
• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power：9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
