NUX NSS 4 Pulse mini IR loader guitar effect pedal

NUX NSS 4 Pulse mini IR loader

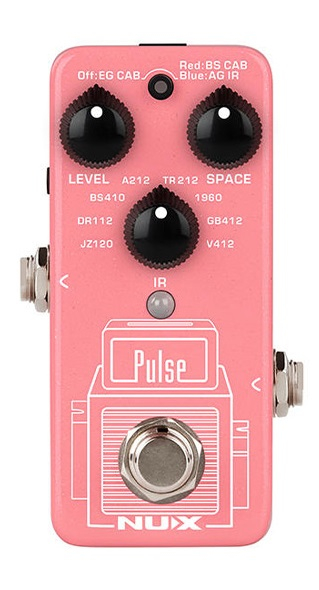

Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8” phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW.

Specifications:

• WAV format supports automatically. (through Pulse Editor)
• 3 default IR types in the mini enclosure. (Total=24slots)
• EG CAB: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412.
• BS CAB: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212.
• AG IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie.
• 1024 samples real time calculation.
• True-bypass or Buffer-bypass.
• Supports Stereo.
• Low power consumption. (less than 100mA)
• USB Audio Stream, Firmware Update.
• Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power：9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
