Product: | Neutrik NL8MM Speakon/Speakon connector |
---|---|
Brand: | Neutrik |
Item number / Code: | 118465 / ZŁ-NL8MM |
Current availability: | 0 pcs. |
This item is no longer available. Please contact our team for alternative products. | |
Key words: | Neutrik NL8MM Speakon/Speakon connector, Neutrik NL8MM, NL8MM |

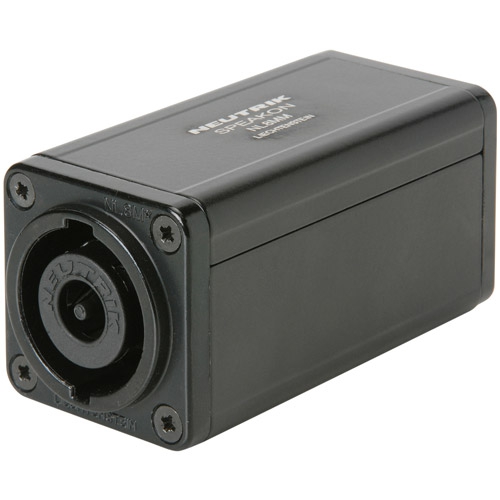

Neutrik NL8MM
Specifications:
• Connection Type: Adapter
• Gender: male
• Contact resistance: ≤ 3 mΩ (after lifetime)
• Dielectric strength : 4 kVdc (peak)
• Insulation resistance: > 1 GΩ (after dampheat)
• Rated current per contact: 15 A rms continuous
• Rated current per contact: 30 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V (Insulation)
• Attention: speakON is NOT to be used as an AC mains or power supply connector!
• Lifetime: > 5000 mating cycles
• Locking device: Quick Lock
• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6 30 % GR)
• Shell: Polyamide (PA 6 30 % GR)
• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range : -30 °C to +80 °C
