Monacor TXA 480 PA system

Monacor TXA-480

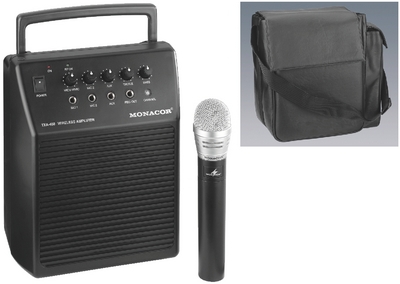

Portable PA system for mobile applications, e.g. at sales events, lectures. TXA-480 consisting of an amplifier/receiver unit, a wireless hand-held microphone and a practical shoulder bag. Additionally Monacor has a 2 microphone inputs and 1 line input for CD player or cassette recorder. Each input with gain control. Universal power supply of the amplifier/receiver via 230 V mains voltage, 12 V car battery or 1.5 V batteries D size. Integrated battery charging function (1 x 9 V battery, 2 x 1.5 V battery AA size). M8 threaded bushing for mounting onto a stand. Supplied without batteries. Licence-free in the EU.


Specification:

• Output power: 20W MAX
• Carrier frequency: 863.05-864.95MHz
• Range: approx. 30m
• Mic input: 2.5mV
• Aux input: 130mV
• Record output: 280mV/100kΩ
• Equalizer: Bass ±4dB/200Hz, Treble ±5dB/10kHz
• Dimensions: 220x275x140mm
• Weight: 3.3kg
• Amplifier: 230V˜/50Hz/40VA, 12-15V DC current /1A, 2 x 1.5V batt. D size
• Microphone: 9V battery
• TXA-480 Inputs
- Mic: 2 x 6.3mm jack
- Aux: 1 x 6.3mm jack
• Record: 1 x 6.3mm jack
