T-Rex Tonebug Phaser guitar efect pedal

T-Rex Tonebug Phaser

Phaser is a classic phase shifter that will bring your sound to life by adding dynamic, undulating colour to rhythm and lead parts. It’s got all the controls you need and nothing you don’t – and it delivers the incredible tubey vintage tone you expect from a T-Rex pedal. Using Phaser couldn’t be easier. Just turn the page to get started.


Specification:

• Input Impedance @ 1KHz: Higher than 1 M Ohm
• Output Impedance @ 1KHz: Lower than 1 K Ohm
• Power supply: 9V DC
• Minimum Power supply Voltage: 8V DC
• Maximum Power supply Voltage: 12,5V DC

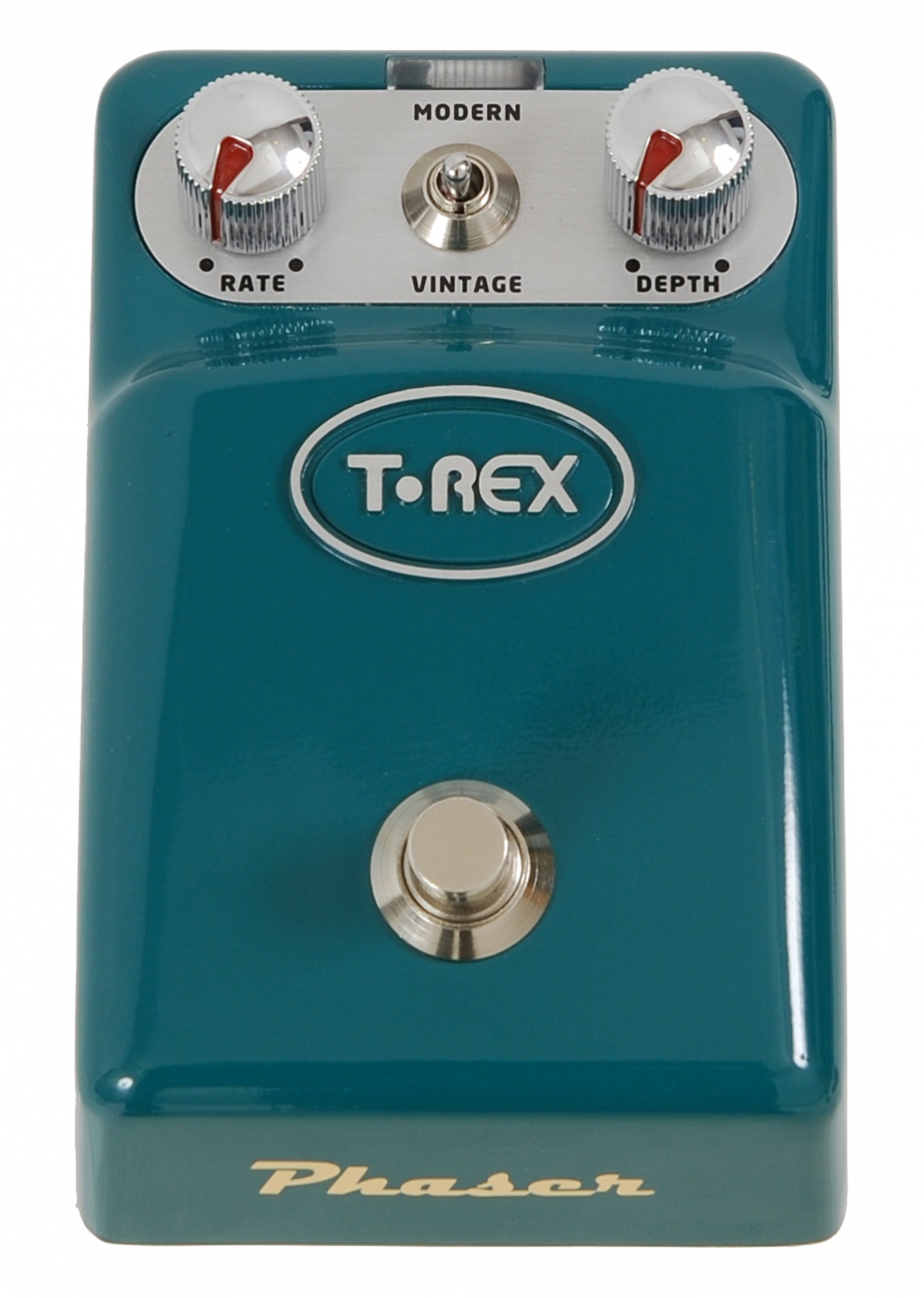

• Potentiometers:
- Rate (width modulation)
- Depth (depth of modulation)
• Switch vintage / modern (read retro or modern)
• Metal housing
• Battery Life: 0,5 to 1 Hours
• Battery Type: 9V battery 6F22 Alkaline

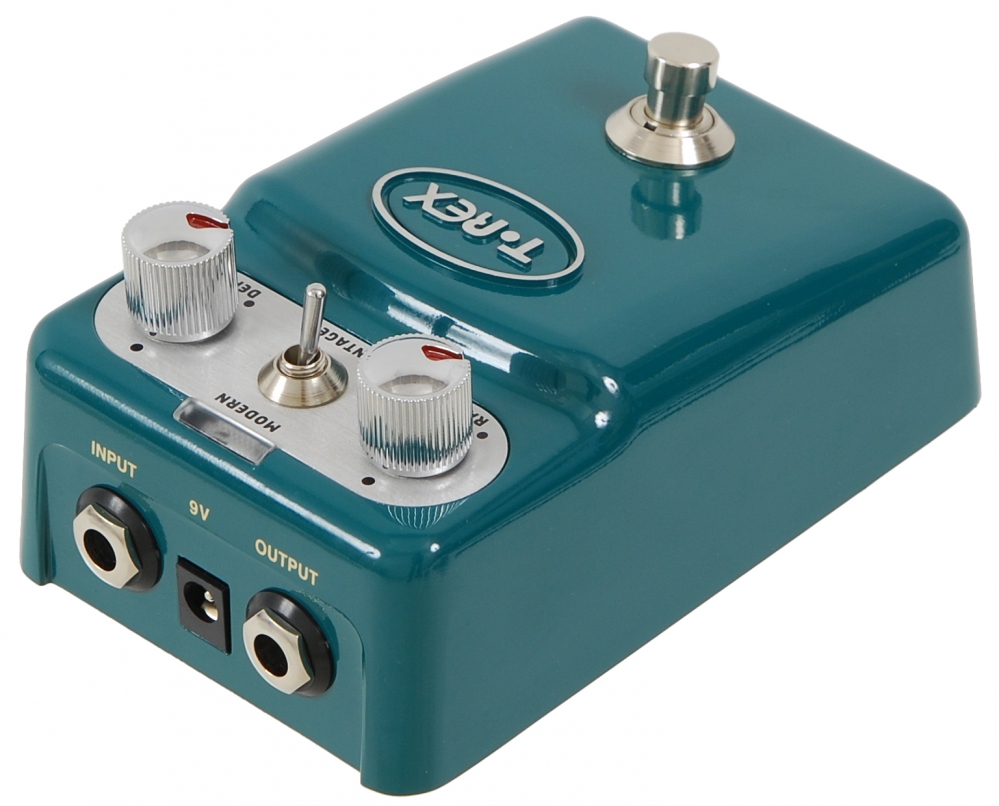

• External connectors: Input Jack. Output Jack, 9V DC Jack (center pin negative)
• Dimensions: 78x60x120mm
• Weight: 0.370kg
• Colour: Green
