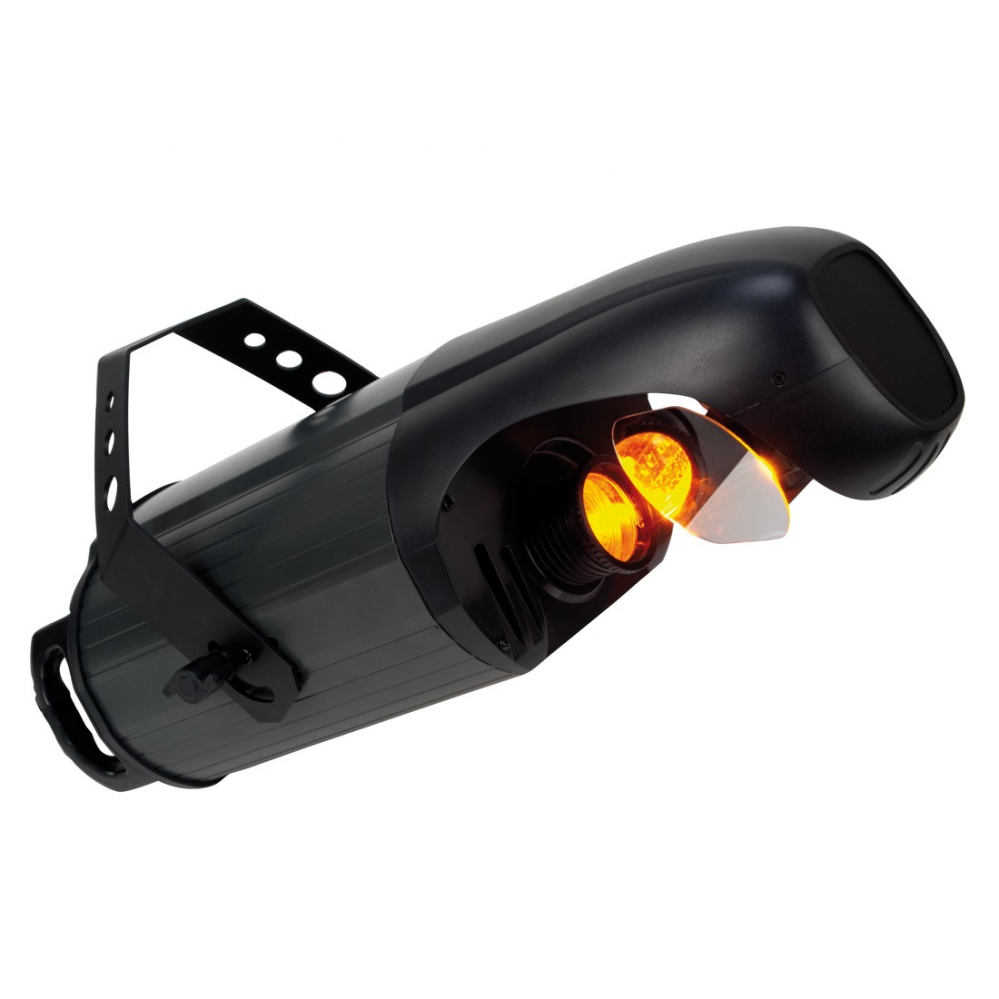

American DJ Inno Scan LED scanner

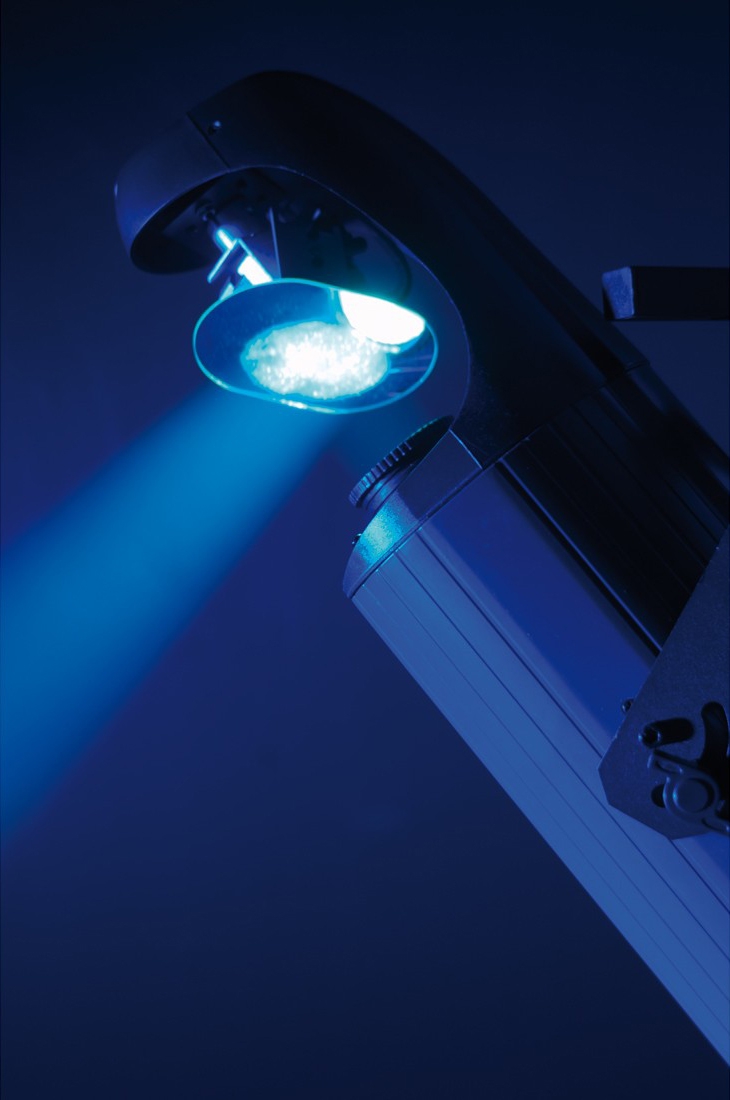

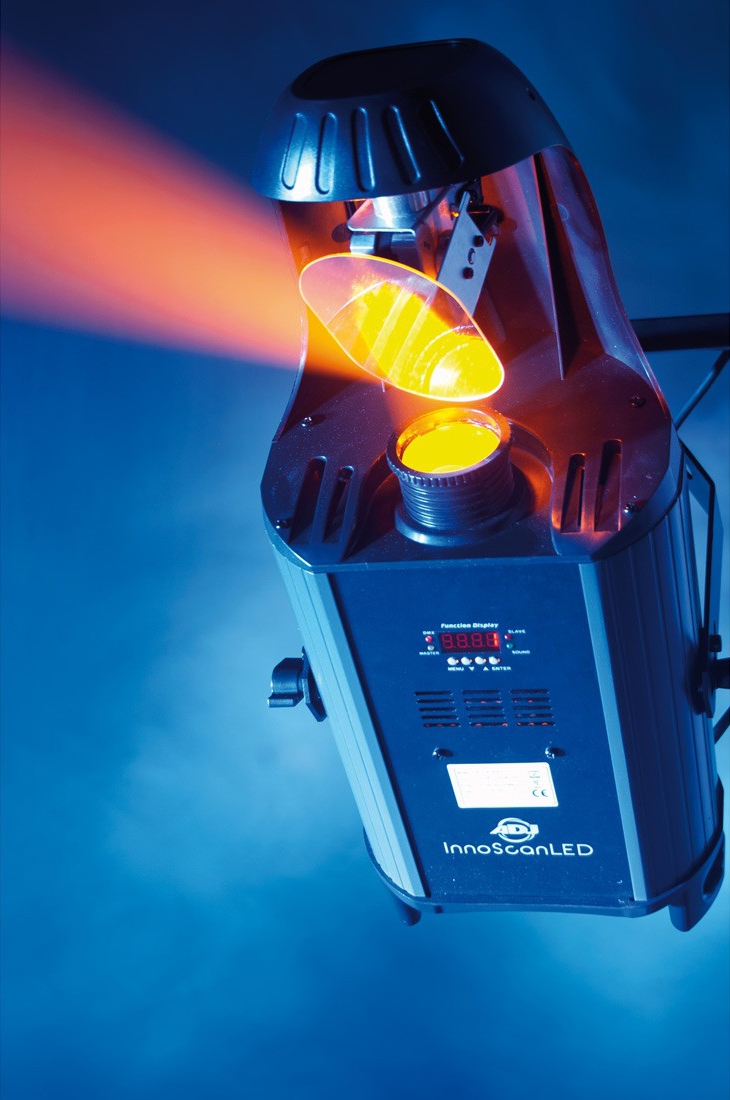

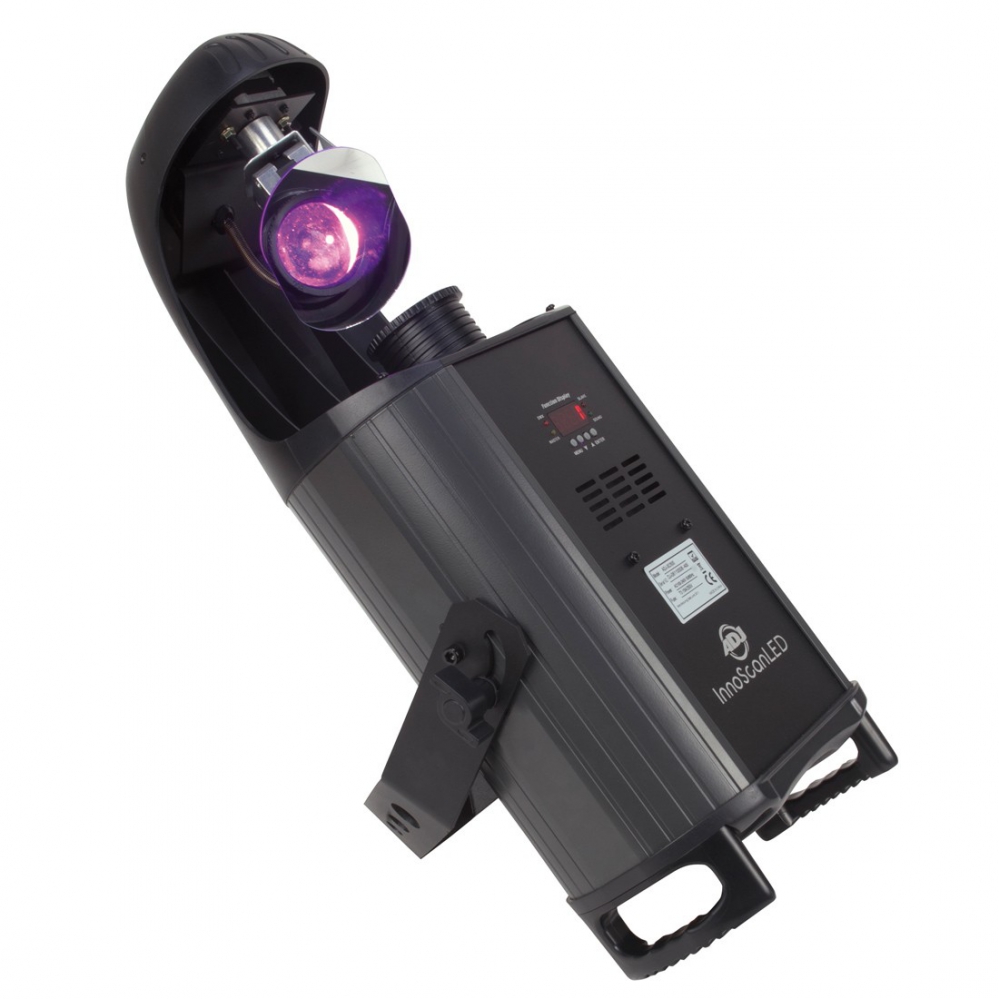

Revolutionary LED Technology of American DJ has been used in a new generation of Inno Scan LED scanner, which is equipped with a 50W LED. LED lifetime is estimated at 30 000 hours. In addition, the scanner has replaceable gobos, 8 colors and 8 or 11 DMX channels. Inno Scan LED has three operating modes: DMX-512, Master / Slave and Sound Active & mode inversion Pan / Tilt. The scanner has a 1.8 degree stepper motors with micro steps, IEC input / output for serial connections and input for the famous series of UC3 drivers.

• High power 50W white LED
• 8 colors plus white
• 6 rotating indexed gobos and open separate shields color/gobo, interchangeable gobos (Gobo size 23.8 mm, the visible size of 19mm )
• 2 DMX Modes: 8 or 11 channels
• 4-button LED display for menu control
• 3 operation modes: DMX -512, Master/Slave & Sound Active
• Installed lighting programs , Pan / Tilt inversion : using 4 scanners in master/slave scanner 1 and 3 sync with the scanner 2 and 4
• Sound Active
• Manual focus
• Gobo Shake effect
• 9 degrees angle

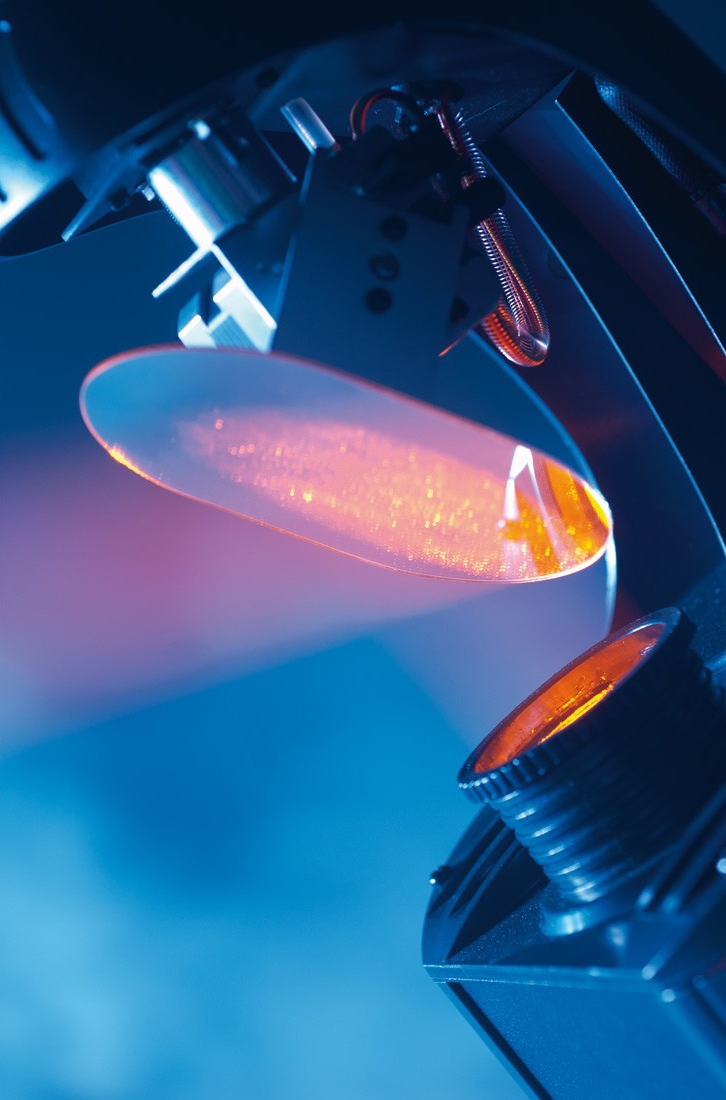

• X / Y mirror movements
• Stepper motor with micro steps
• DMX-512
• Strobe and pulse effect
• Fan cooled
• Hook and mounting bracket included
• Maximum power consumption: 103W
• Compatible with eas -to-use UC3 series controllers (sold separately)
• Long life LEDs, estimated at 30 000 hours
• Power supply: AC 100 -240V 50/60Hz - IEC socket
• Dimensions (L x W x H): 274 x 208 x 555mm
• Weight: 6.30 kg
