DuraTruss DT 34-C41-X alu trussing 4-way cross piece

Product:	DuraTruss DT 34-C41-X alu trussing 4-way cross piece
Brand:	DuraTruss
Item number / Code:	147337 / DT-34-C41-X
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	DuraTruss DT 34-C41-X alu trussing 4-way cross piece, DuraTruss 34-C41-X, DuraTruss 34 C41 X, DuraTruss 34C41X, 34-C41-X, 34 C41 X, 34C41X
Ask a Product Expert:	Jakub Pindelski, tel. +48 717974679, email: [email protected]

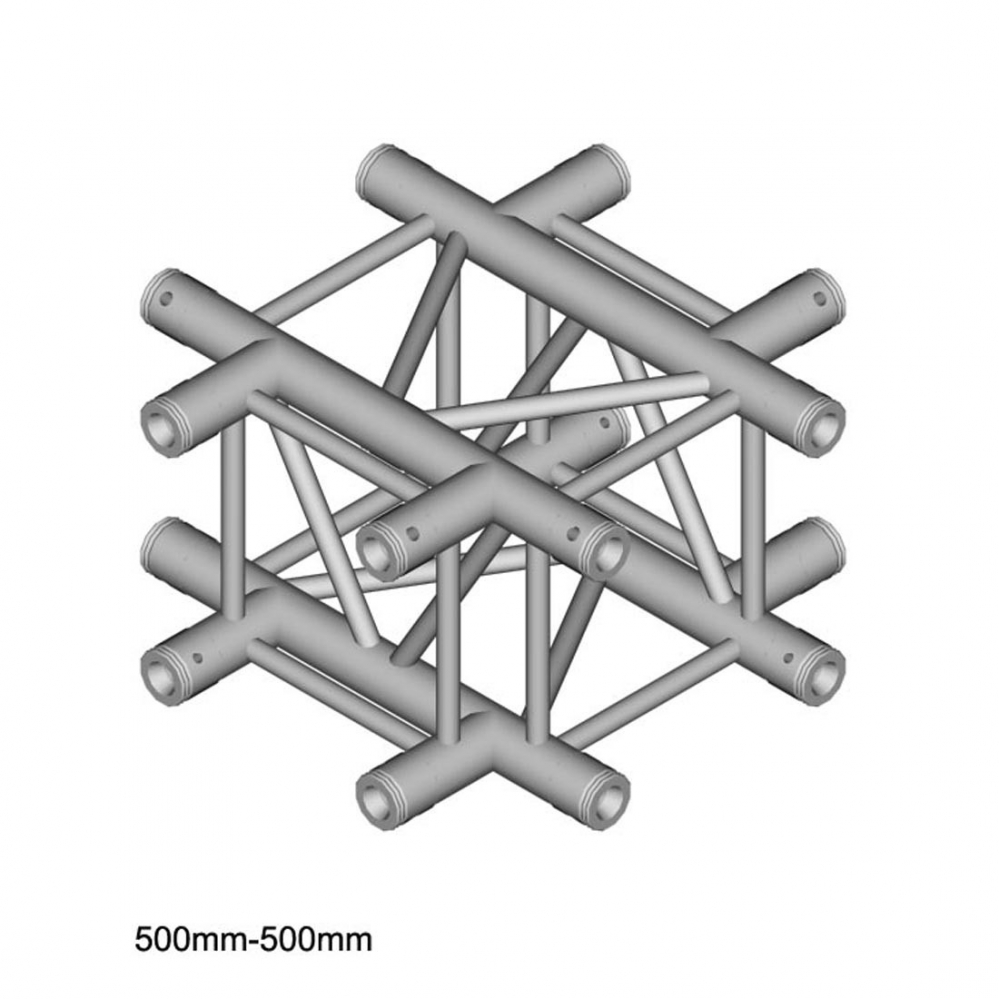

DuraTruss DT 34-C41-X

Aluminum truss Series DT33 is one of the best selling systems on the market. A very big advantage of 29cm series is their low weight and high load capacity/load.
We guarantee a stress-free and quick work with this system. Trusses contain standard system quick couplings. The main pipe has a diameter of 50mm; it's made of high-grade aluminum alloy and it has wall thickness of 2 mm. Lamellas have pipe diameter 20mm with wall thickness of 2mm.
DuraTruss products are TUV certified.

Specification:
• Diameter of the main pipe: 50 mm
• Wall thickness of mine pipe: 2mm
• Diameter of lamellas: 20mm
• Lamellas wall thickness: 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Connectivity: quick coupling with the pin and security
• Includes: 12x quick coupling, 24x pin, 24x security
• Manufactured in accordance with DIN 4112, DIN 4113-1
