Neutrik NP3TT-P-B tiny telefone bantam plug

Product:	Neutrik NP3TT-P-B tiny telefone bantam plug
Brand:	Neutrik
Item number / Code:	163535 / ZŁ-NP3TT-P-B
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Neutrik NP3TT-P-B tiny telefone bantam plug, Neutrik NP3TT-P-B, Neutrik NP3TT P B, Neutrik NP3TTPB, NP3TT-P-B, NP3TT P B, NP3TTPB
Ask a Product Expert:	Marcin Szampowalski, tel. +48 717974679, email: [email protected]

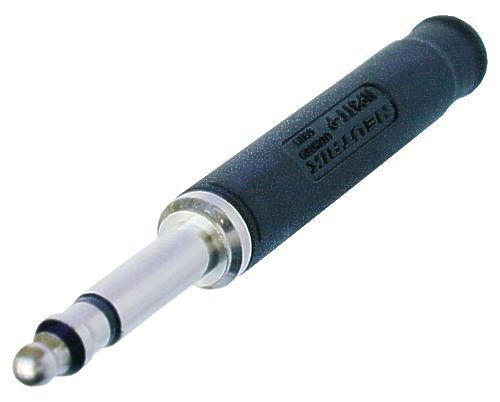

Neutrik NP3TT-P-B

4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.

Specifications:

• Contact resistance: depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage : < 50 V
• Cable O.D: 4 - 4.8 mm
• Crimp size : 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
• Lifetime : > 1000 mating cycles
• Wiresize : 0,25 mm²
• Wiresize: 24 AWG
• Wiring: Solder contacts
• Contact plating: 2 µm Ni (Su)
• Contacts : Bronze (CuSn6) (Tip)
• Shell: Polyamide (6 30% GR) (black)
• Insulation: Polyamide (PA 6.6 30 % GR)
• Standard compliance: MIL-P-642/13
• Solderability: Complies with IEC 68-2-20
• Temperature range : -20 °C to +65 °C
