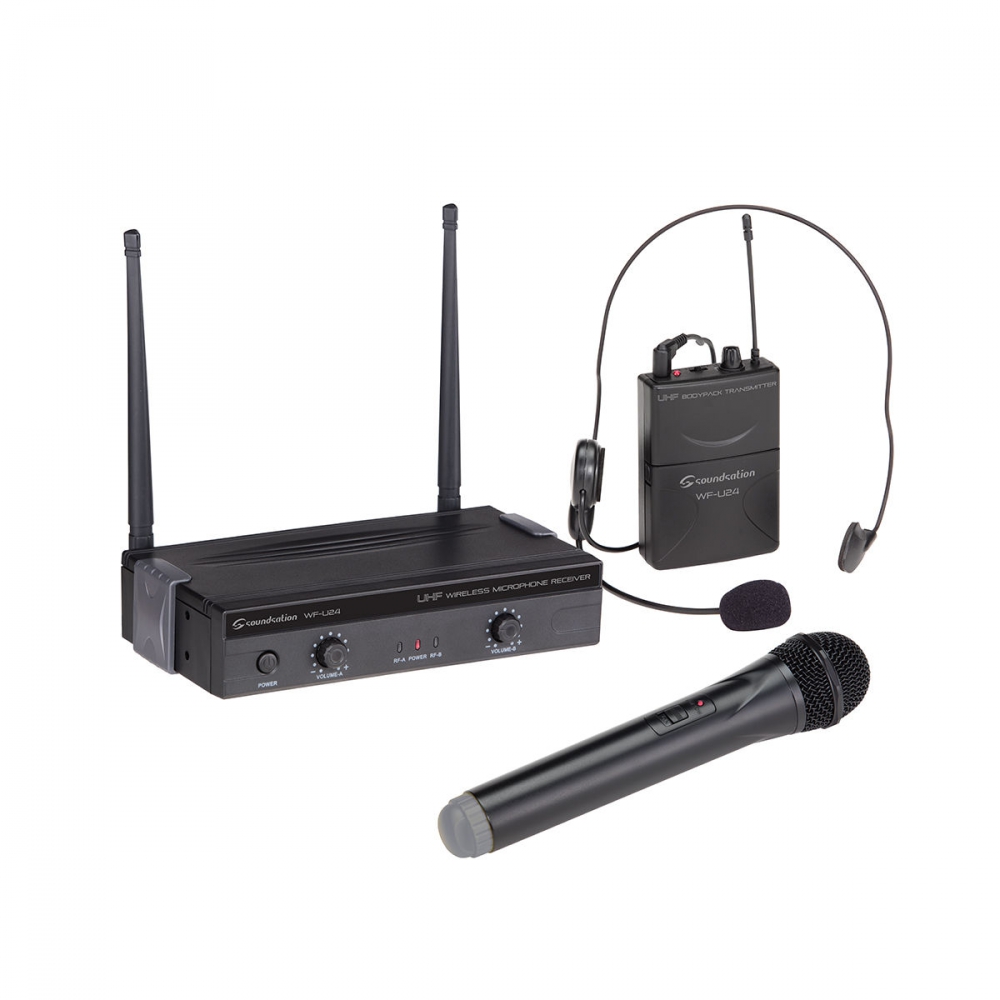

Soundsation WF-U24HP 2x 4-Channel UHF wireless system with 1 receiver, 1 handheld mic., 1 pocket transmitter and 1 headset

Soundsation WF-U24HP

WIREFREE series wireless systems adopt the fully integrated solution single chip, integrated microphone amplifier, audio based on DSP processor, PLL frequency synthesizer, etc. This allows us to offer highly professional performance yet cost-effective products to everyone.

Specifications:

• Carrier Frequency: UHF 863-865MHz
• Frequencies: 863.000 MHz / 863.500 MHz / 864.000 MHz / 865.000 MHz
• Frequency Stabilization: Automatic calibration
• Dynamic Range: > 90dB
• Total Harmonic Distortion: < 0.4%
• Frequency Response: 40Hz-15KHz ±3dB
• Receiver Power Supply: DC17V - 300mA
• Receiver Power Consumption: < 4W
• Receiver Signal/Noise Ratio: > 95dB
• Receiving Sensitivity: >7dBuV (SINAD=30dB)
• Handheld Microphone / Body-pack Transmitter Power: 10mW
• Modulation Type: FM
• Max Deviation: ±20KHz
• Battery Voltage: 3V (2x1.5V AA Battery)
• Battery Continuum Using: 5 hours
• Handheld Microphone Dimension (W/DxH): Ø53 x 255 mm
• Handheld Microphone Net Weight: 0.26kg (batteries included)
• Pocket Transmitter Dimension (WxHxD): 62 x 103 x 30 mm
• Pocket Transmitter Antenna (W/DxH): Ø3 x 9 mm
• Pocket Transmitter Net Weight: 0.135kg
