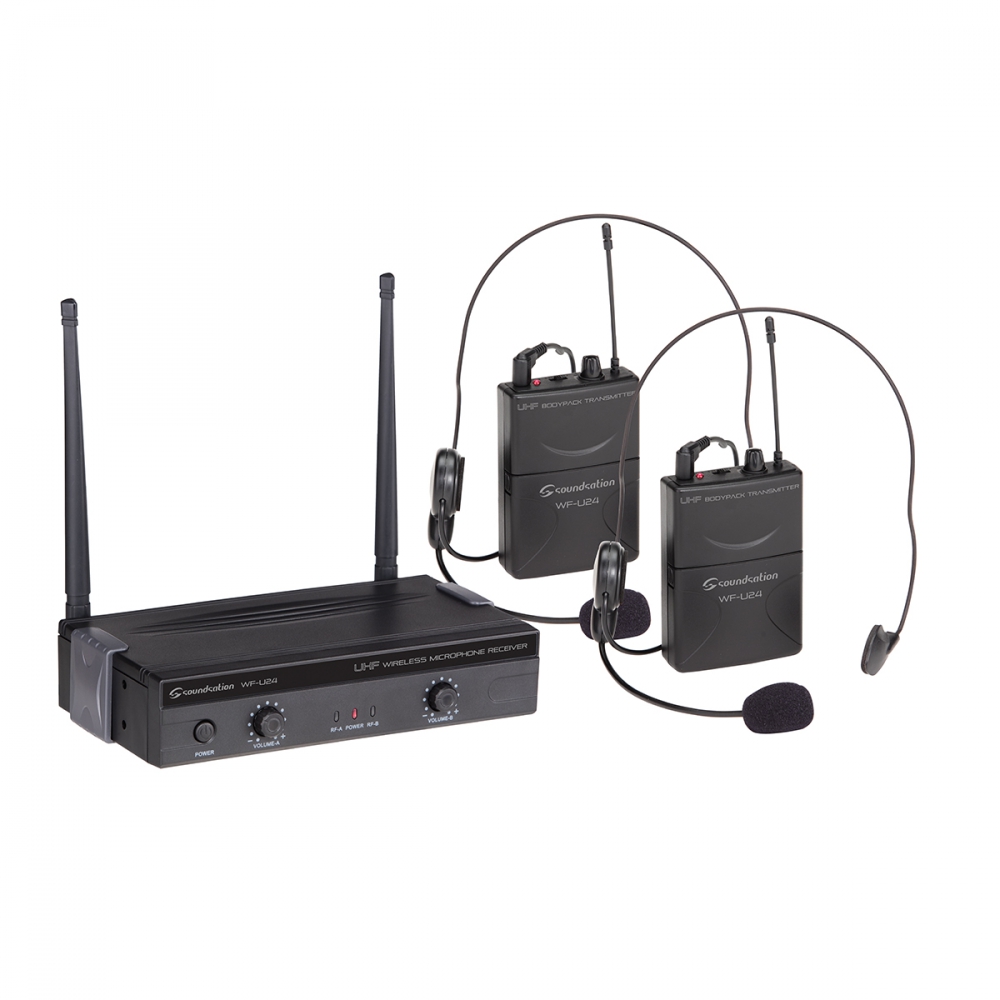

Soundsation WF-U24PP 2x 4-Channel UHF wireless system with 1 receiver, 2 pocket transmitters and 2 headsets

Product:	Soundsation WF-U24PP 2x 4-Channel UHF wireless system with 1 receiver, 2 pocket transmitters and 2 headsets
Brand:	Soundsation
Item number / Code:	169324 / SOUNDSAT-WF-U24PP
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Soundsation WF-U24PP 2x 4-Channel UHF wireless system with 1 receiver, 2 pocket transmitters and 2 headsets, Soundsation WF-U24PP, Soundsation WF U24PP, Soundsation WFU24PP, WF-U24PP, WF U24PP, WFU24PP
Ask a Product Expert:	Marcin Zdziabek, tel. +48 717974679, email: [email protected]

Soundsation WF-U24PP

WIREFREE series wireless systems adopt the fully integrated solution single chip, integrated microphone amplifier, audio based on DSP processor, PLL frequency synthesizer, etc. This allows us to offer highly professional performance yet cost-effective products to everyone.

Specifications:

• Carrier Frequency: UHF 863-865MHz
• Frequencies: 863.000 MHz / 863.500 MHz / 864.000 MHz / 865.000 MHz
• Frequency Stabilization: Automatic calibration
• Dynamic Range: > 90dB
• Total Harmonic Distortion: < 0.4%
• Frequency Response: 40Hz-15KHz ±3dB
• Receiver Power Supply: DC17V - 300mA
• Receiver Power Consumption: < 4W
• Receiver Signal/Noise Ratio: > 95dB
• Receiving Sensitivity: >7dBuV (SINAD=30dB)
• Transmitter Power: 10mW
• Modulation Type: FM
• Max Deviation: ±20KHz
• Battery Voltage: 3V (2x1.5V AA Battery)
• Battery Continuum Using: 5 hours
• Pocket Transmitter Dimension (WxHxD): 62 x 103 x 30 mm
• Pocket Transmitter Antenna (W/DxH): Ø3 x 9 mm
• Pocket Transmitter Net Weight: 0.135kg
• Headset Microphone Net Weight: 0.05kg
