RCF EVOX 5v2 2way array speaker system, 800W RMS

RCF EVOX

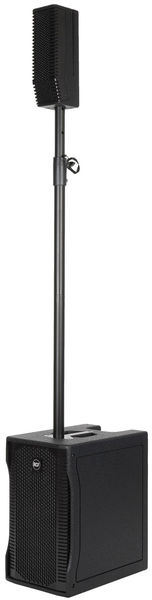

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

Specifications:

• 800 Watt
• 125 dB max SPL
• 45 Hz 20 kHz frequency response
• 10" Woofer, 2.0" v.c.
• 5 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation
• Frequency Response -3 dB:45 Hz ÷ 20 Hz
• Max SPL:125 dB
• Horizontal coverage angle:120°
• Vertical coverage angle:30°
• Fullrange:5 x 2", 1.0" v.c.
• Woofer:10", 2.0" v.c.
• Input connectors:Jack-XLR male
• Output connectors:XLR female
• Input sensitivity:-2 dBu / + 4 dBu
• Crossover frequencies:220 Hz
• Protections:thermal, rms
• Limiter:Soft limiter
• Controls:Volume, EQ, phase, xover
• Total power:800 W PEAK
• High frequencies:200 W PEAK
• Low frequencies:600 W PEAK
• Total power:400 W RMS
• High frequencies:100 W RMS
• Low frequencies:300 W RMS
• Cooling:Convection
• Connections:VDE connector
• Cabinet Material:Baltic birch plywood
• Hardware:2 x M6
• Handles:1 top
• Pole Mount/Cap:Yes
• Colour:black
• Height:490/19.29 mm/inch
• Width:288/11.34 mm/inch
• Depth:427/16.81 mm/inch
• Net Weight:19.2/42.32 kg/lbs
