Soundsation WF-U4 Fitness 6 channels UHF Wireless System for Fitness applications

Soundsation WF-U4 Fitness

WF-U4 FITNESS is the answer to freedom of movement needs and protection against moisture that must characterize a wireless microphone specifically designed for fitness and for all activities based on high physical activity. The other key features are the absolute ease of use and protection against interference, which are the real answer to those who have not much time for setting or sound check: just plug the receiver into a 6.3mm jack socket of your audio system, choose one of the 16 frequencies available and that's it. The WF-U4 FITNESS operates in the ISM-Europe band (863-865 MHz), which is free throughout Europe and does not require special permissions or licenses. Frequency selection is done via the DIP-switch on the receiver and via the infrared synchronization system on the transmitter. Finally, the system is equipped with a practical and sturdy case to protect the elements when not in use and easy transport.

Features:

• 16-Channel UHF wireless microphone with PLL circuit Design

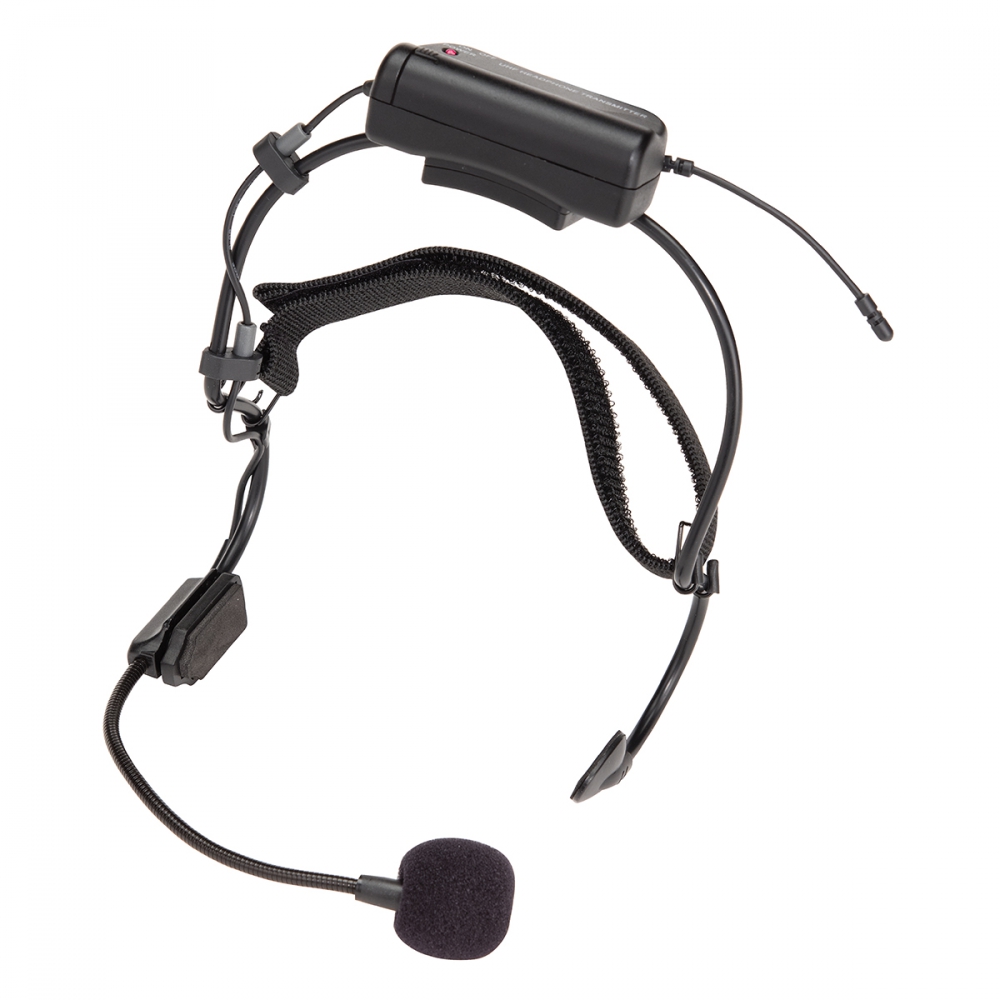

• Hard sweat resistant headset transmitter with dynamic capsule
• DIP-switch channel selection with IR sync to transmitter
• No license across Europe (ISM Europe, 863-865MHz)
• Specifically designed for fitness applications
• Quick installation system without cables between receiver and PA system
• Small and easy to carry receiver
• 6.3mm Jack for direct connection to amplifier systems
• Headset Transmitter uses 1x 1.5V-AAA battery
• Receiver uses 1x 1.5V-AA battery

Specifications:

• System Carrier Frequency: UHF 863-865 MHz
• System Frequency Stabilization: <±30ppm
• System Dynamic Range: >100dB
• System Total Harmonic Distortion: <0.5%
• System Frequency Response: 40Hz – 15KHz ±3dB
• System Ideal Distance: 30m
• Receiver Consume Power: 100 mA
• Receiver Signal/Noise Ratio: >100dB
• Receiving Sensitivity: 5 dBuV (SINAD = 30dB)
• Receiver De-Emphasis: 50µs
• Transmitter Power: 10mW
• Modulation Type: FM
• Transmitter Deviation: ±40KHz
• Microphone Capsule: Cardioid Dynamic Capsule
• Transmitter Current Consumption: <90mA
