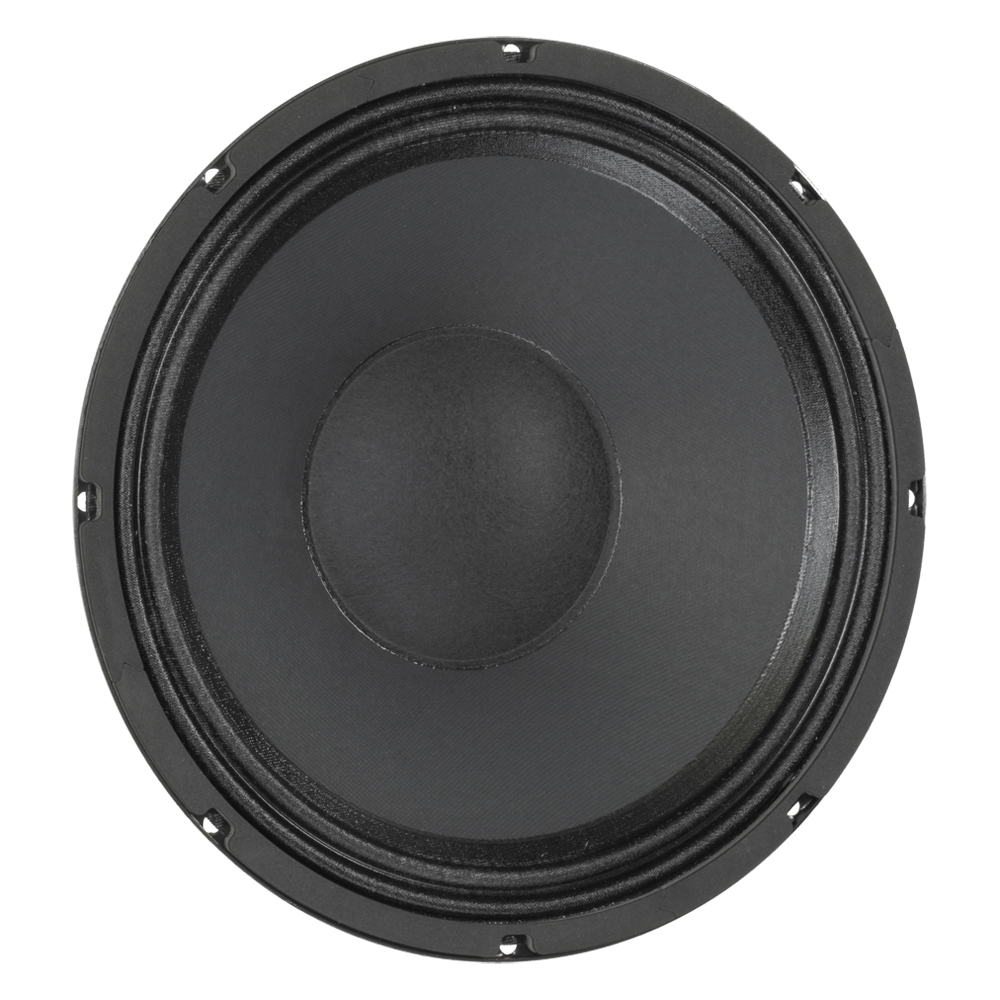

Eminence Basslite S 2012 12″ loudspeaker, 150W, 8Ohm

Eminence Basslite S 2012

Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X12 enclosures.

Specifications:

• Nominal Basket Diameter: 12", 305 mm
• Nominal Impedance: 8 Ω
• Program Power: 300 W
• Watts: 150 W
• Resonance: 48 Hz
• Usable Frequency Range: 49 Hz - 4.5 kHz
• Sensitivity: 99 dB
• Magnet Weight: 4 oz.
• Gap Height: 0.28", 7.1 mm
• Voice Coil Diameter: 2", 51 mm
• Resonant Frequency (fs): 48 Hz
• DC Resistance (Re): 5.1 Ω
• Coil Inductance (Le): 0.43m H
• Mechanical Q (Qms): 5.5
• Electromagnetic Q (Qes): 0.53
• Total Q (Qts): 0.48
• Compliance Equivalent Volume (Vas): 90.6 liters / 3.2 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 270.1 cc
• Mechanical Compliance of Suspension (Cms): 0.24 mm/N
• BL Product (BL): 11.7 T-M
• Diaphragm Mass Inc. Airload (MMs): 46 grams
• Efficiency Bandwidth Product (EBP): 91
• Maximum Linear Excursion (Xmax): 5.2 mm
• Surface Area of Cone (Sd): 519.5 cm2
• Maximum Mechanical Limit (Xlim): 9.8 mm
• Sealed: Acceptable
• Vented: Acceptable
• Driver Volume Displaced: 0.059 cu.ft. / 1.67 liters
• Overall Diameter: 12.03", 305.6 mm
• Baffle Hole Diameter: 11.07", 281.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: N/A
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D.: 11.59", 294.4mm
• Depth: 5.1", 129.5 mm
• Net Weight: 4.1 lbs, 1.86 kg
• Shipping Weight: 5.8 lbs, 2.63 kgs
• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Neodymium magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Cloth cone edge
• Dust Cap Composition: Solid composition felt dust cap
