Product: | LD Systems WS ECO 2 HHD 1 – 1 Channel Diversity UHF Wireless Set with Handheld Mic |
---|---|
Brand: | LD Systems |
Item number / Code: | 140545 / LDS-WS-ECO2-HHD1 |
Current availability: | 0 pcs. |
This item is no longer available. Please contact our team for alternative products. | |
Key words: | LD Systems WS ECO 2 HHD 1 – 1 Channel Diversity UHF Wireless Set with Handheld Mic, LD Systems WS-ECO2-HHD1, LD Systems WS ECO2 HHD1, LD Systems WSECO2HHD1, WS-ECO2-HHD1, WS ECO2 HHD1, WSECO2HHD1 |

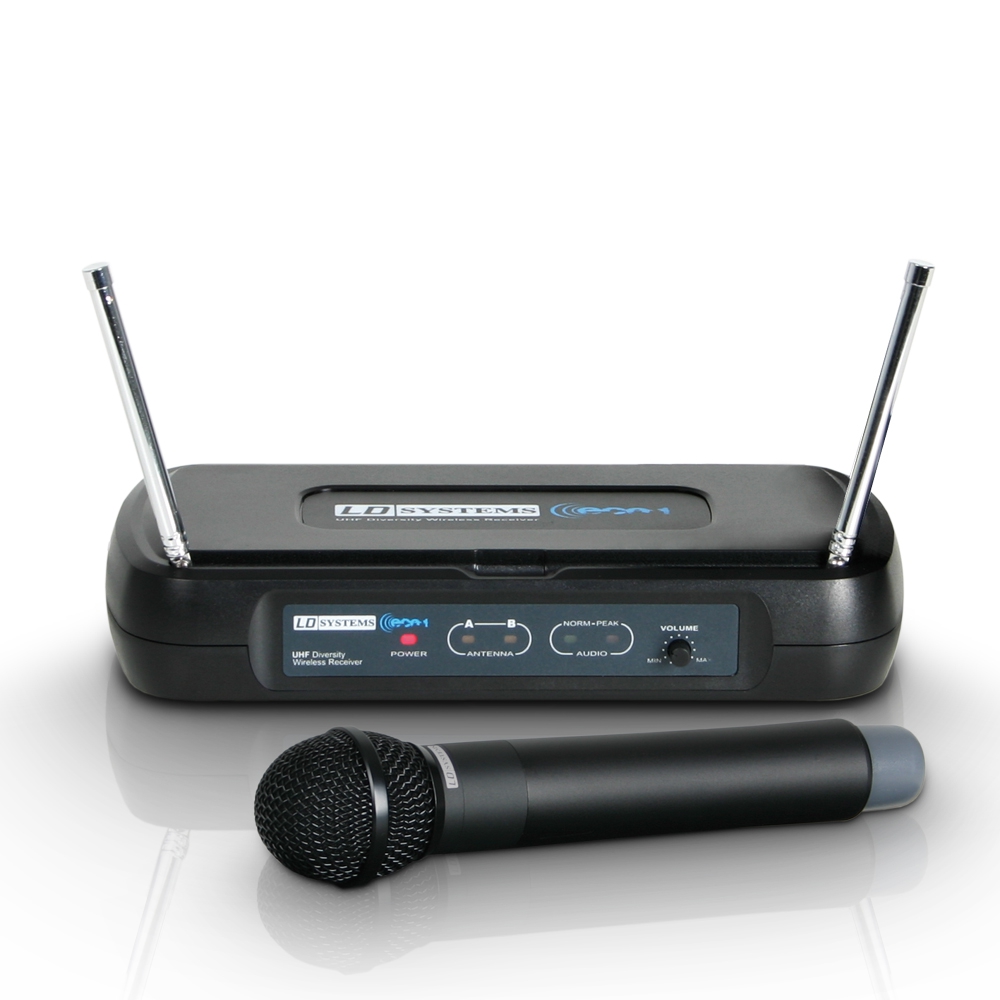

LD Systems ECO 2 HHD 1
LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.
The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.
• 1 channel UHF PLL Diversity Wireless System
• Handheld Version
• Removable antennas and optional 19" Rack Mount Kit
• Handheld dynamic mic with soft-touch surface and Sensitivity switch
• Great operation range (50 m open field)
• Long battery life
• 1 fixed frequency: 863.100 MHz
SPECIFICATIONS
• Product number: LDWSECO2HHD1
• Product type: Receiver
• Type: diversity
• Transmission frequency range: 863.100MHz
• Weight: 0.88kg
LDWSECO2MD1 - Dynamic Handheld Microphone
• Product type: Handheld transmitter
• Transmission frequency range: 863.100MHz
• Channels: 1
• Microphone type: dynamic
• Directivity: cardioid
• Frequency response: 60Hz
• Rated HF output power: 10 mW
• Controls: Power, transmission power Hi / Low, gain
• Indicators: On / Low Battery
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Length: 250mm
• Diameter: 53mm
• Weight: 0.28kg
• Other features: incl. batteries
LDWSECO2R1 - Receiver
• Product type: Receiver
• Type: diversity
• Modulation Type: FM
• Transmission frequency range: 863.100MHz
• Channels: 1
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 105dB
• Audio output, balanced: XLR
• Audio output, unbalanced: 6.3 mm Jack
• Controls: volume, Mute Level (Squelch)
• Indicators: Audio signal (Norm / Peak), antenna A/B, Power
• Operating voltage: 12 - 18 V DC, 400 mA, External Power Supply
• Width: 235mm
• Height: 44mm
• Depth: 118mm
• Weight: 0.6kg
• Accessories (included): power supply, batteries
