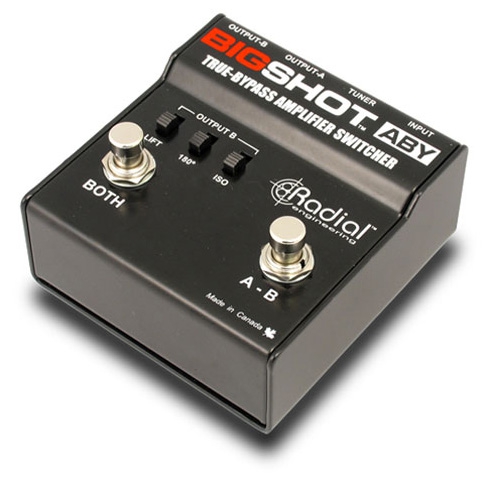

Radial BigShot ABY passive switcher

Radial BigShot ABY

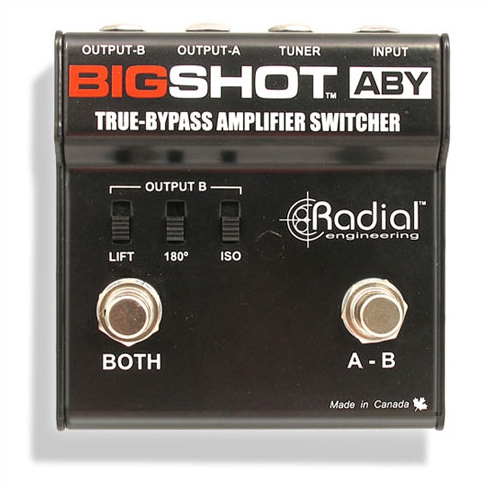

The Radial BigShot ABY is a compact ABY switcher that enables you to either switch between two amplifiers or combine the signal when you want both amps to play at the same time. Designed for the purist, this true-bypass ABY switcher is completely passive meaning that there are no tone altering buffers in between the guitar and the amplifier. With the BigShot ABY, you get the pure tone from your guitar plugged direct into your amp! To add versatility, the BigShot ABY is also equipped with a separate tuner out. This 'always on' output feeds your tuner for constant monitoring while keeping it out of the signal chain. Should you experience hum and buzz problems due to ground loops, the BigShot ABY comes to the rescue with a ground lift switch and built-in isolation transformer. Once engaged, you can toggle the polarity of the second amplifier to ensure both amps play in absolute phase.

Features:

• True-bypass ABY amp selector with tuner out
• On-board transformer to eliminate hum & buzz
• 180° polarity reverse to phase-match amps
• 100% passive, does not require a battery or power

Specifications:

• Toggle between 2 guitar amps or play both at once
• Guitar input
• Thru-put
• 2 outputs
• Output B has ground-lift, polarity reverse, isolation transformer
