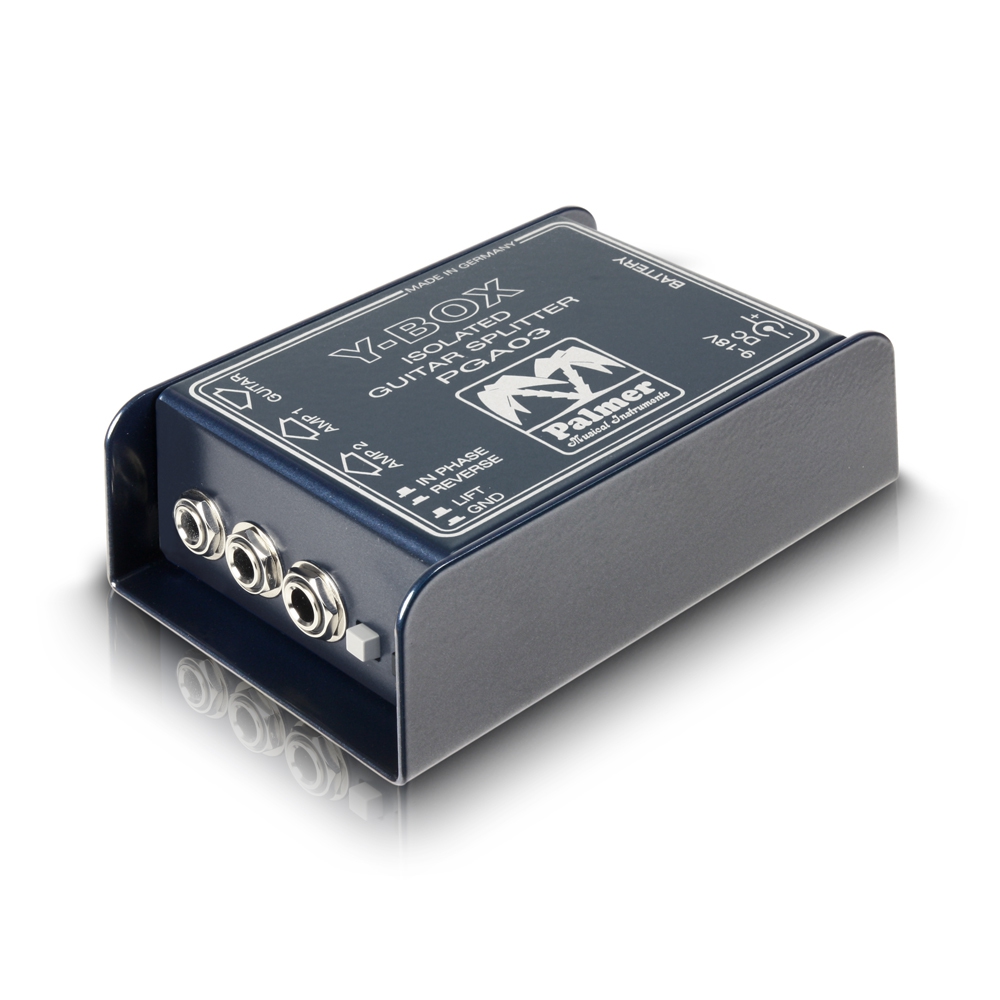

Palmer PGA3 MI Y-BOX guitar splitter

Palmer PGA3 MI Y-BOX

Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended.
The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.

Specifications:

• Product type: splitter
• Type: active
• Split type: 1 in 2
• Inputs: 1
• Input connectors: 6.3 mm Jack
• Adjustable input: no
• Number of split-outputs per canal: 1
• Output connectors: 6.3 mm Jack
• THRU outputs/channel: 1
• Transformer isolated outputs: yes
• Adjustable output: no
• Controls: phase, ground lift
• Indicators: Power
• Operating voltage: 9 V DC power supply, 9 V block
• Width: 125 mm
• Depth: 80 mm
• Height: 45 mm
• Cabinet material: sheet steel
• Cabinet surface: powder coated
• Weight: 0.58 kg
