QSC E12

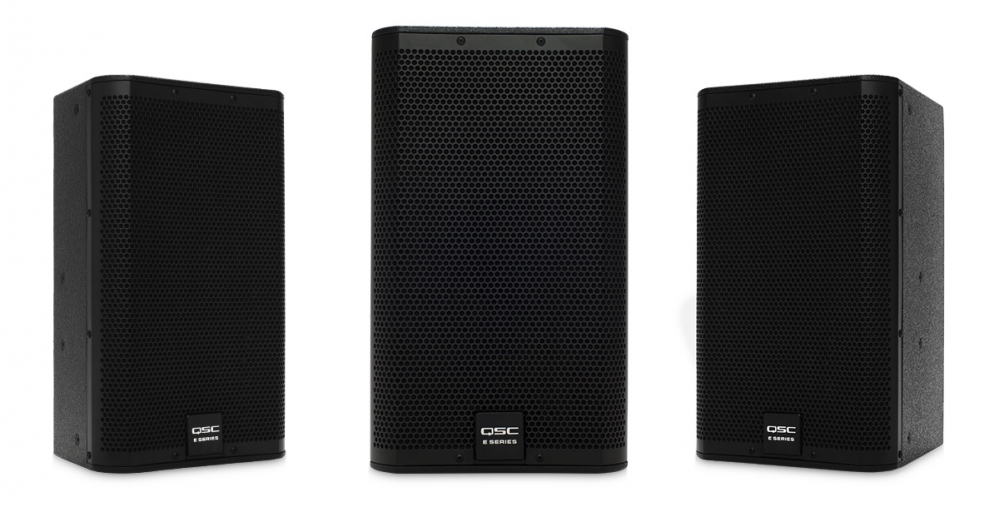

The E12 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features:

• High output, professional quality sound with 400 W continuous power
• E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
- For PLD/CXD visit Amplifier Navigator Software
- For GXD visit the GXD Firmware Updater
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill

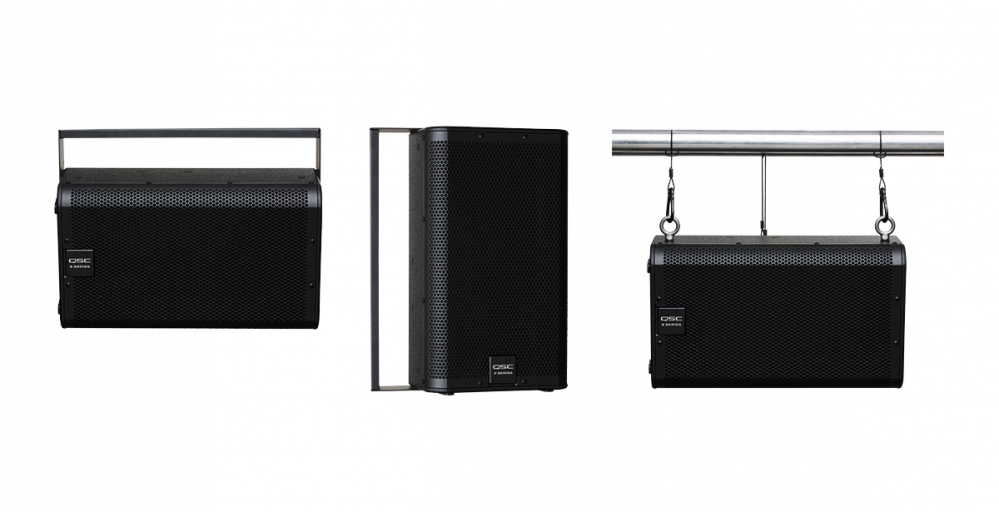

• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

Specifications:

• Frequency Range (-6 dB): 64Hz – 20kHz
• Power capacity²: continuous/peak: 400 W / 1600 W
• Sensitivity: 96dB, 1W@1m
• Coverage Angle: 85° conical DMT
• Ouptut (peak SPL @ 1m): 128dB
• Drivers:
- LF : 305 mm (12-inch) driver with 76 mm (3-inch) voice coil
- HF: 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
• Nominal Impedance: 8Ω
• Cross-over: Full range only, 1.8kHz
• Input Connections: 2x NL4, 1x barrier strip
• Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
• Mounting and suspension: 6 x M8 suspension points, dual angle, 35mm pole-socket
• Net Weight: 23 kg / 51 lbs
• Dimensions (WxHxD): 360x616x371mm/ 14.2x24.2x14.6in
