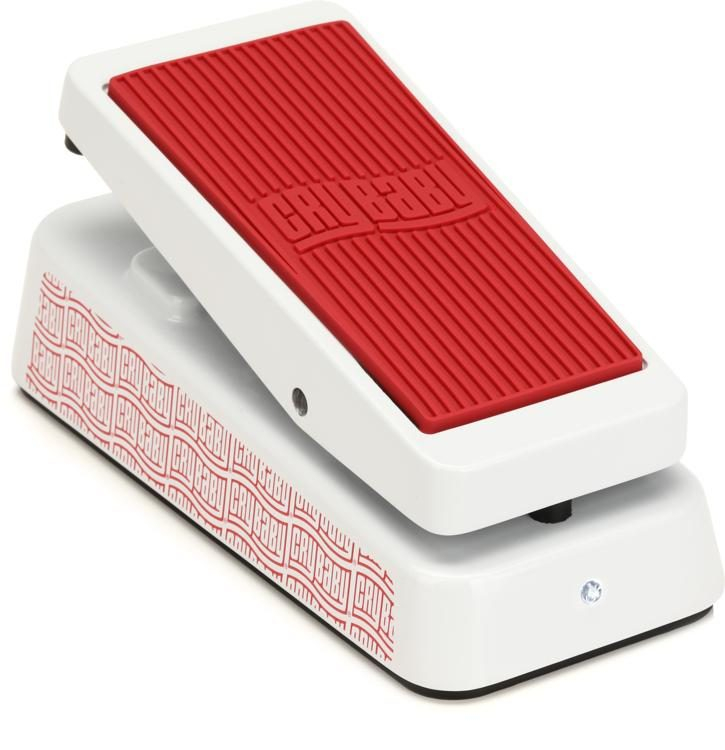

Dunlop Crybaby JR Wah SE White guitar effect pedal

Dunlop Crybaby JR Wah

The Cry Baby Junior Wah features front-mounted jacks and an 8" housing for clean configurations on the world's most popular boards so that you don't have to choose between a tidy layout and your Cry Baby Wah fix.

The Cry Baby Junior Wah is purpose-built for pedalboards. Designed in collaboration with Pedaltrain, this wah has been carefully crafted for maximum layout efficiency on the world's most popular boards. Front-mounted input, output, and power jacks allow for a tighter configuration of pedals, freeing up space on the sides that would normally be taken up by cable ends. And speaking of cables, the Cry Baby Junior Wah's 8" housing length lines up perfectly with the routing spaces on boards such as those from Pedaltrain's Metro Series, in particular—as well as those from the Classic, Novo, and Terra Series—making for a nice, clean arrangement of cords.

The Cry Baby Junior Wah allows for just as much versatility in tone as it does for your pedalboard layout. On the side of the pedal is a convenient and accessible three-position switch that allows you to choose one of our three most popular Cry Baby Wah voices, covering the full frequency spectrum. The H setting gives you the aggressive modern sound of the GCB95, M provides the midrange growl of vintage wah pedals, and L provides a sound that's dark and rich.

Specifications:

• Compact design with all connections on the front side
• Specially designed for use on pedalboards
• 3-Way voicing switch: H: 380 Hz - 2100 Hz / M: 330 Hz - 1800 Hz / L: 270 Hz - 1500 Hz
• Resistance of the pedal can be adjusted
• Metal housing
• 6.3 mm mono jack input / output
• Power supply via 9 battery or 9V DC power supply (not included - e.g. Dunlop ECB003)
• Power supply connection: 2.1 x 5.5 mm barrel connector, polarity (-) inside
• Power consumption: 3 mA
• Dimensions (L x W x H): 203 x 102 x 76 mm
• Weight: approx. 230 g
